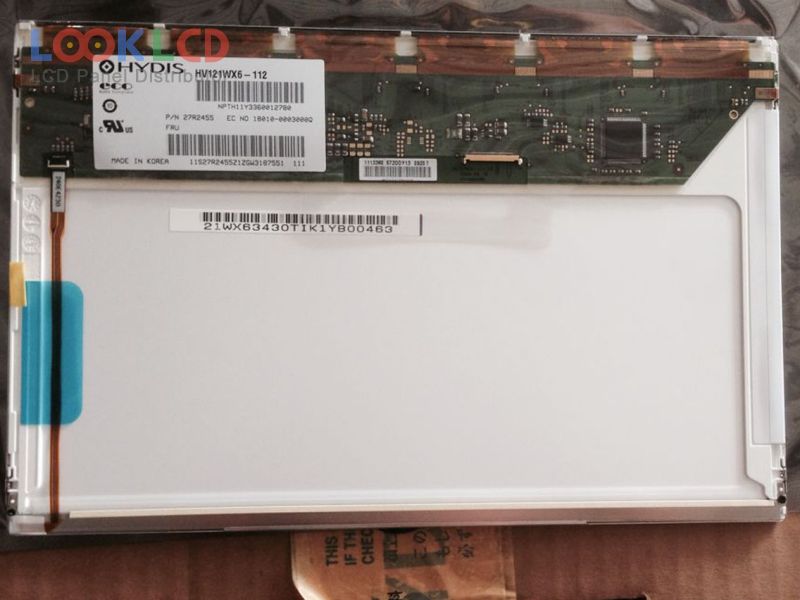

| PartNumber | HV121WX6-112 |
| Marca | HYDIS |
| mărimea | 12.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HYDIS |
| model de panou | HV121WX6-112 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | AFFS, Normally Black, Transmissive |
| Zonă activă | 261.12×163.2 mm |
| contur | 276.8×180×6.6 mm |
| suprafaţă | |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 12S4PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| HX121WX1-110 | HYDIS | 12.1 | 1280×800 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LQ097L1JY01 | SHARP | 9.7 | 2048×1536 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| N070ICE-G02 Rev.C3 | Innolux | 7.0 | 800×1280 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
| VVX11F019G00 | Panasonic | 11.6 | 1920×1080 |
