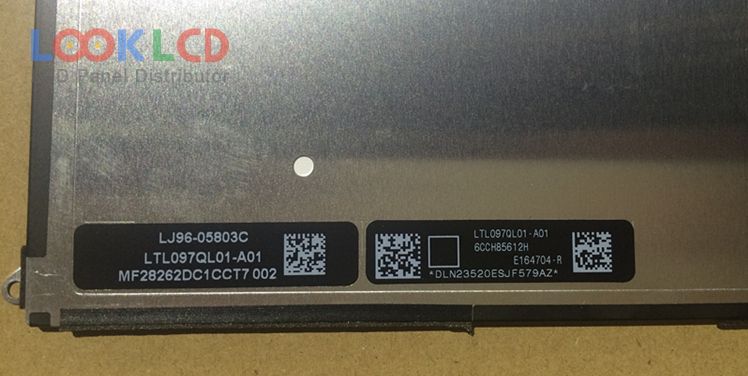

| PartNumber | LTL097QL01-A01 |
| Marca | Samsung |
| mărimea | 9.7 |
| Aplicație | PAD |
| Rezoluţie | 2048×1536 |
| Compoziţie | LCM |
| Luminozitate | 420 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | SAMSUNG |
| model de panou | LTL097QL01-A01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.7 inch |
| rezoluţie | 2048(RGB)×1536 , QXGA |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 196.608×147.456 mm |
| suprafaţă | |
| luminozitatea | 420 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLED |

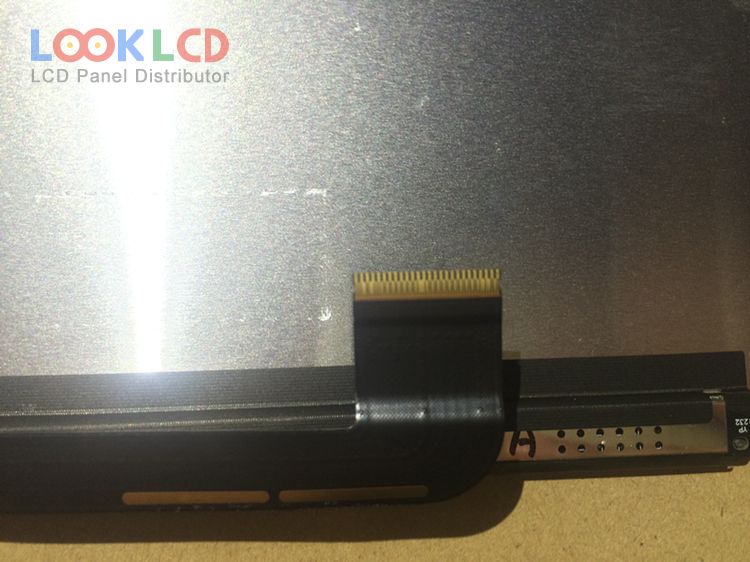

| interfață de semnal | eDP (4 Lanes) |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
