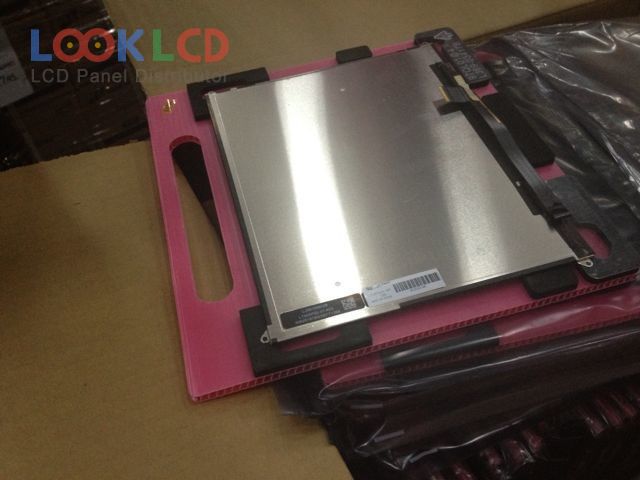

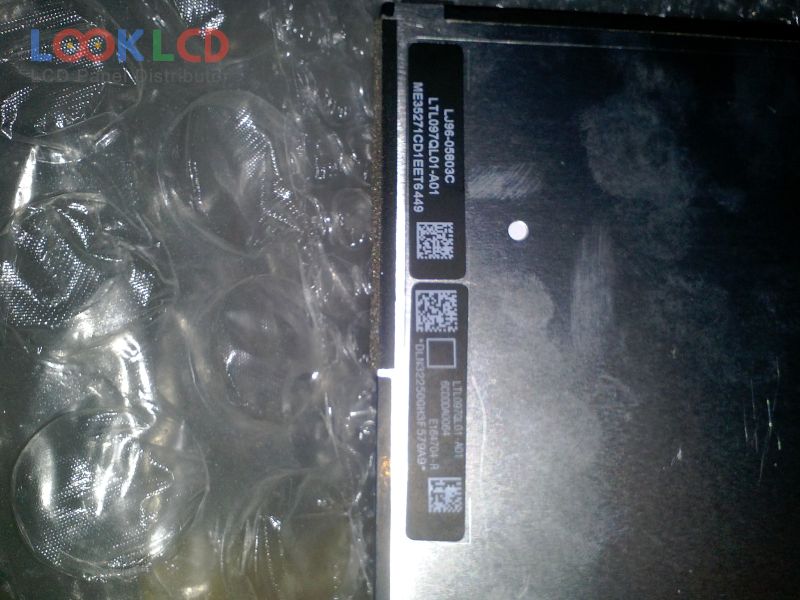

| PartNumber | LTL097QL01-W01 |
| Marca | Samsung |
| mărimea | 9.7 |
| Aplicație | PAD |
| Rezoluţie | 2048×1536 |
| Compoziţie | LCM |
| Luminozitate | 420 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | SAMSUNG |
| model de panou | LTL097QL01-W01 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.7 inch |
| rezoluţie | 2048(RGB)×1536 , QXGA |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 196.608×147.456 mm |
| contur | 208.88×167.12×5.02 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (2H), Reflection 1.45% (Max.) |
| luminozitatea | 420 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |

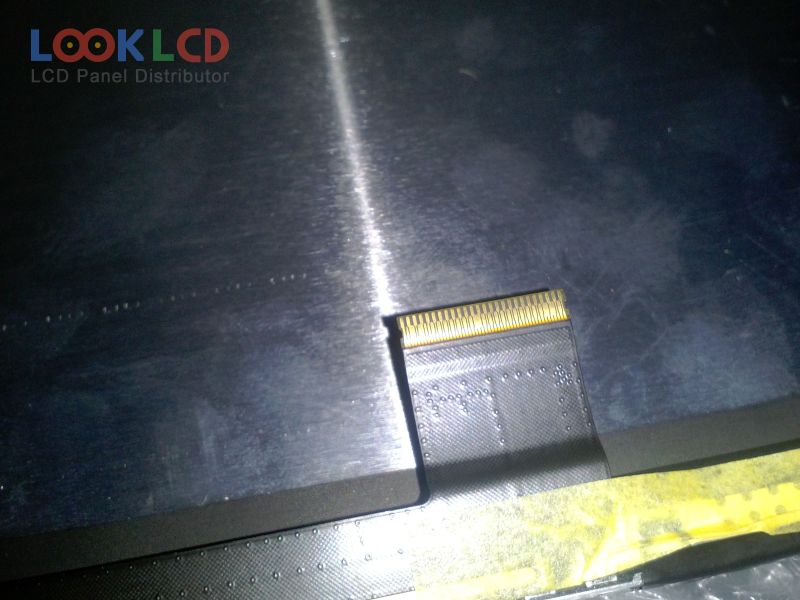

| interfață de semnal | eDP (4 Lanes), 51 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLA3 | LG Display | 9.7 | 1024×768 |
| LP097X02-SLQE | LG Display | 9.7 | 1024×768 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| B101XAN01.3 | AUO | 10.1 | 1366×768 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| LP079X01-SMA2 | LG Display | 7.9 | 768×1024 |
| LP079X01-SMAV | LG Display | 7.9 | 768×1024 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
| TV080X0M-NS0 | BOE | 8.0 | 768×1024 |
