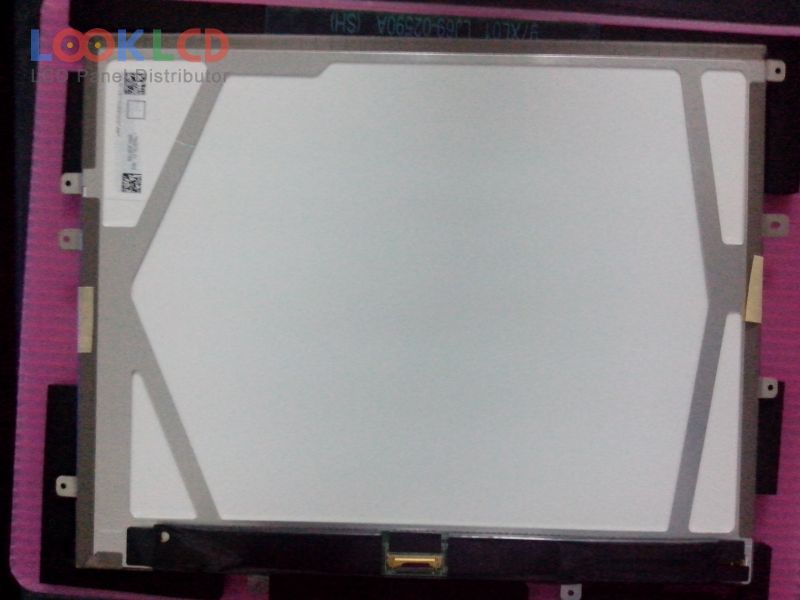

| PartNumber | LTN097XL01-A01 |
| Marca | Samsung |
| mărimea | 9.7 |
| Aplicație | PAD |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 390 |
| CR | 900:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTN097XL01-A01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.7 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 196.608×147.456 mm |
| contur | 210×166.2 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 390 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193152% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| BI097XN02 V.Y | Innolux | 9.7 | 1024×768 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLN1 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
| TV097X0M-NS0 | BOE | 9.7 | 768×1024 |
