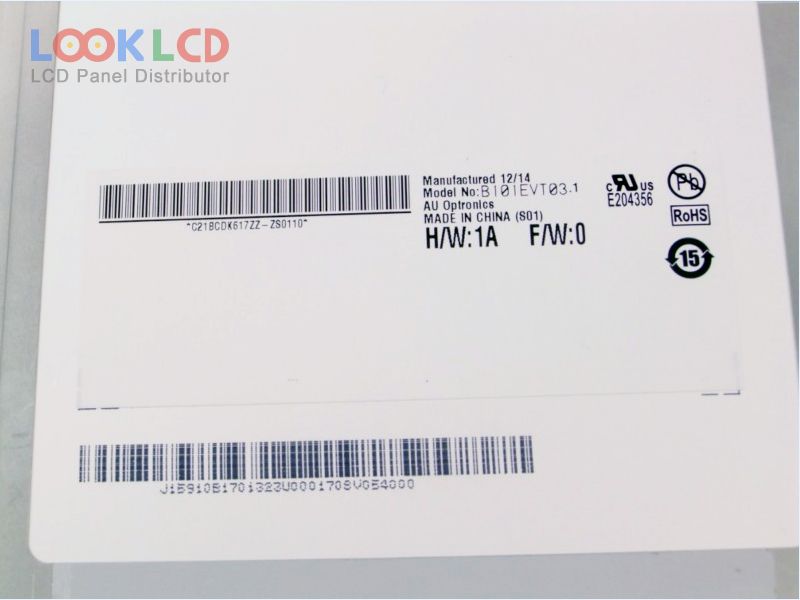

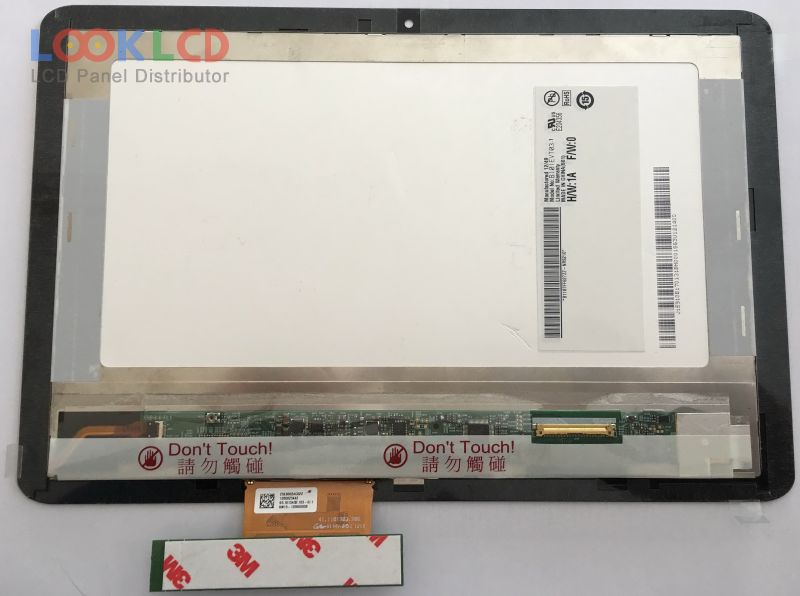

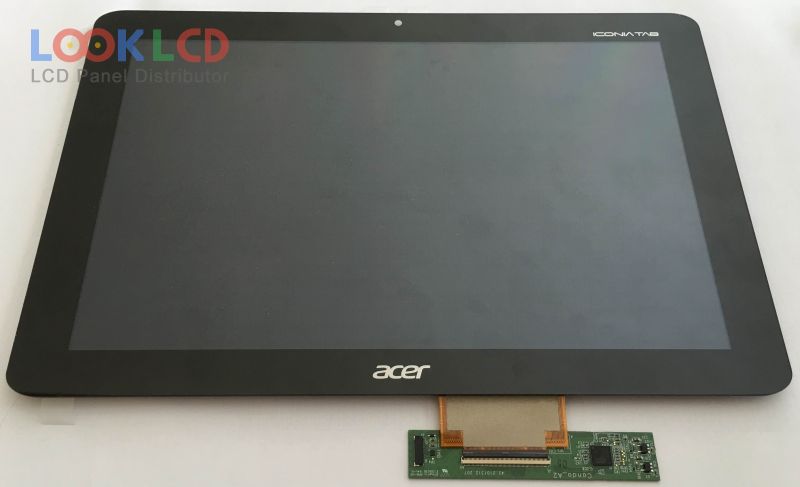

| PartNumber | B101EVT03.1 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | Assembly |
| Luminozitate | 300 |
| CR | 1300:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B101EVT03.1 |
| tip panou | a-Si TFT-LCD , Assembly |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| Zonă activă | 216.96×135.6 mm |
| contur | 253.15×167.75×6.7 mm |
| suprafaţă | Antiglare |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1300:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193147% |
| unghi de vedere | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| B101EW01 V0 | AUO | 10.1 | 1280×720 |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| BP070HD1-100 | BOE | 7.0 | 720×1280 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| M070SW46 R0 | IVO | 7.0 | 1200×1920 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
