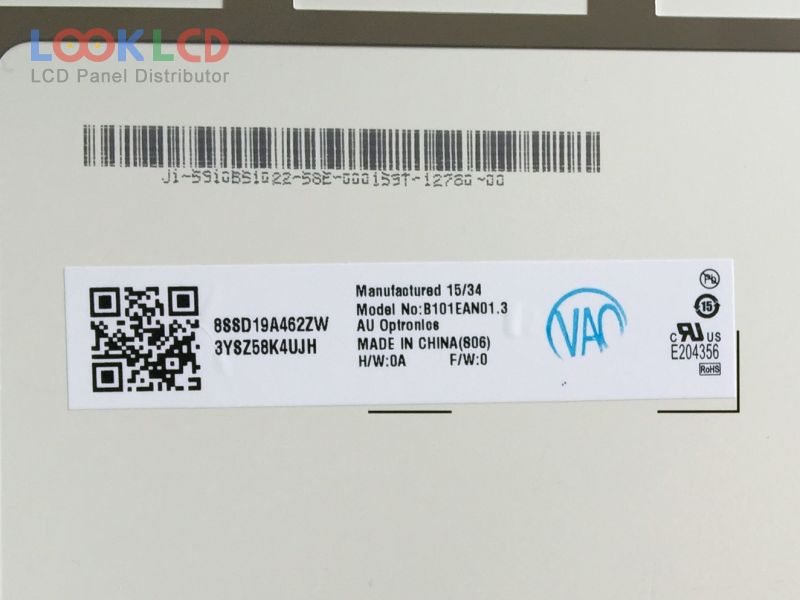

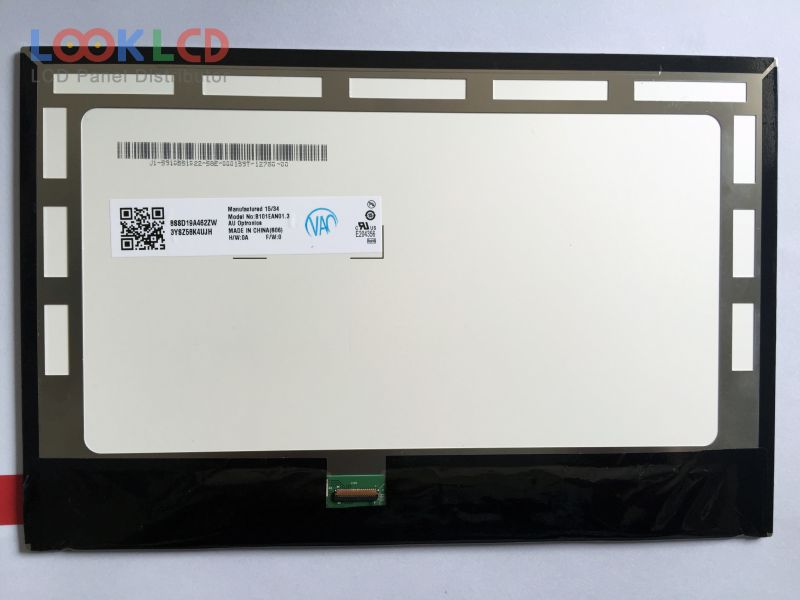

| PartNumber | B101EAN01.3 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | AUO |
| model de panou | B101EAN01.3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | AHVA, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 228.6×149.2×4.4 mm |
| suprafaţă | Antiglare |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S6PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 39 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
