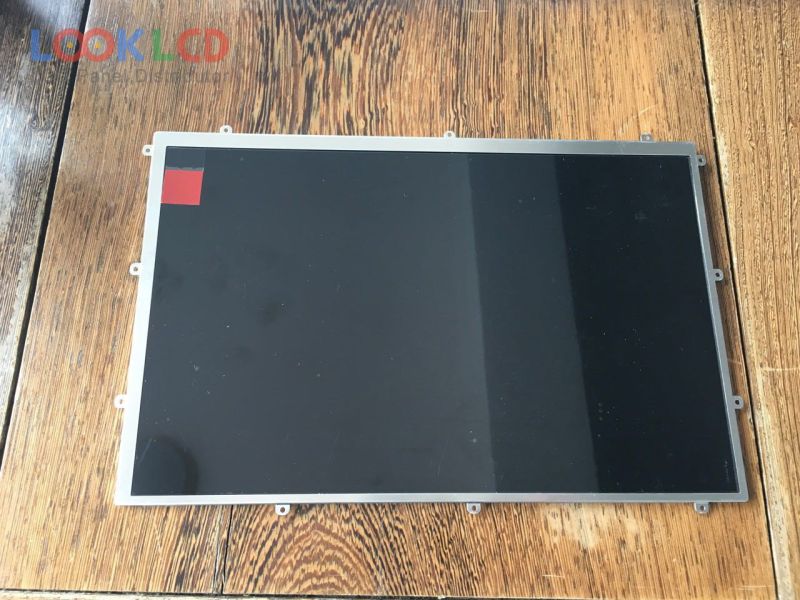

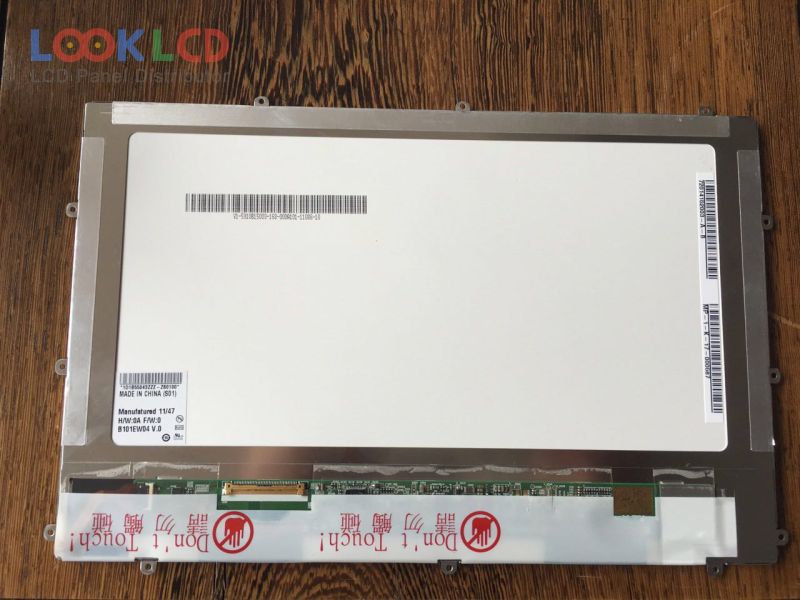

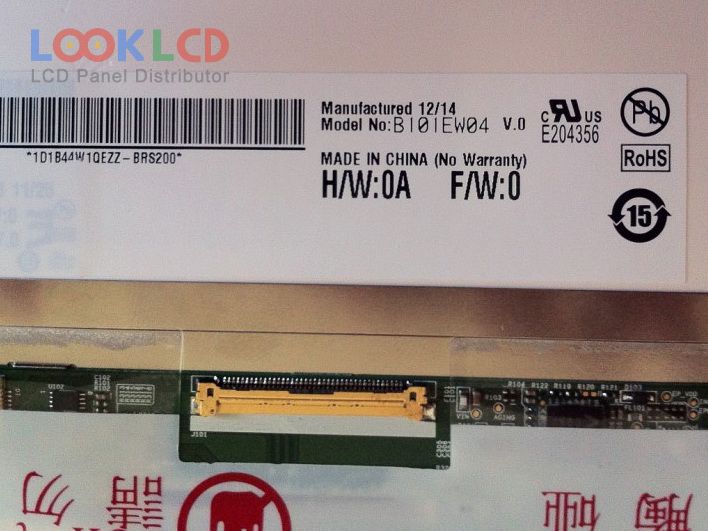

| PartNumber | B101EW04 V0 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B101EW04 V0 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | AMVA, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 229.46×149.1×5.56 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 stringsWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| LTL106HL02-001 | Samsung | 10.6 | 1920×1080 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
