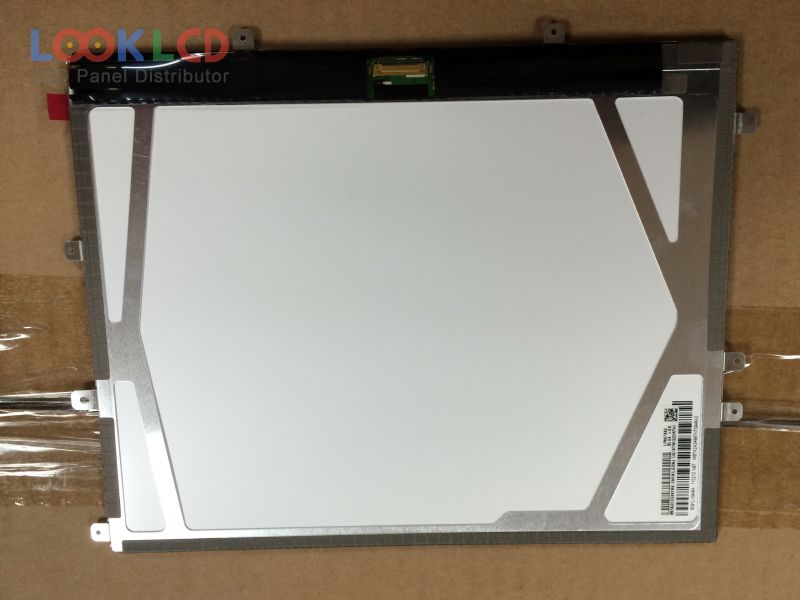

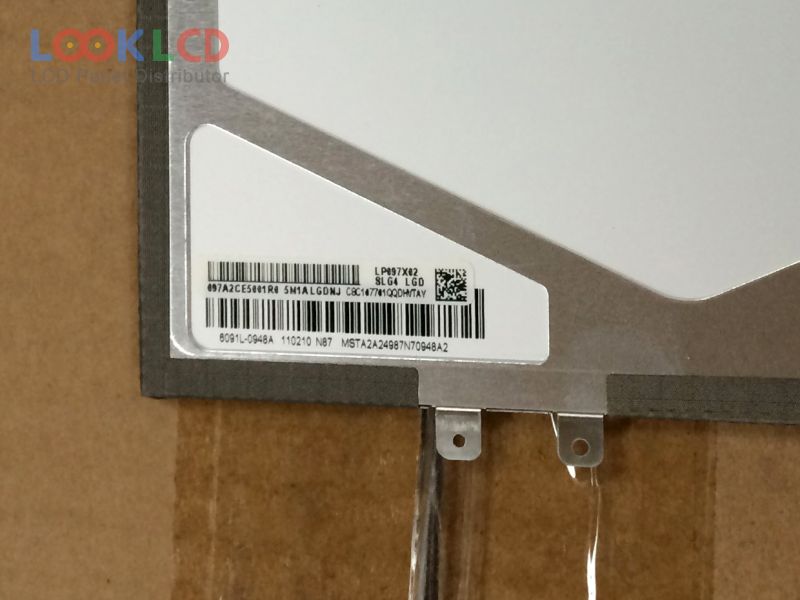

| PartNumber | LP097X02-SLG4 |
| Marca | LG Display |
| mărimea | 9.7 |
| Aplicație | PAD |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LP097X02-SLG4 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.7 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | S-IPS, Normally Black, Transmissive |
| Zonă activă | 196.608×147.456 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193148% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S6PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
