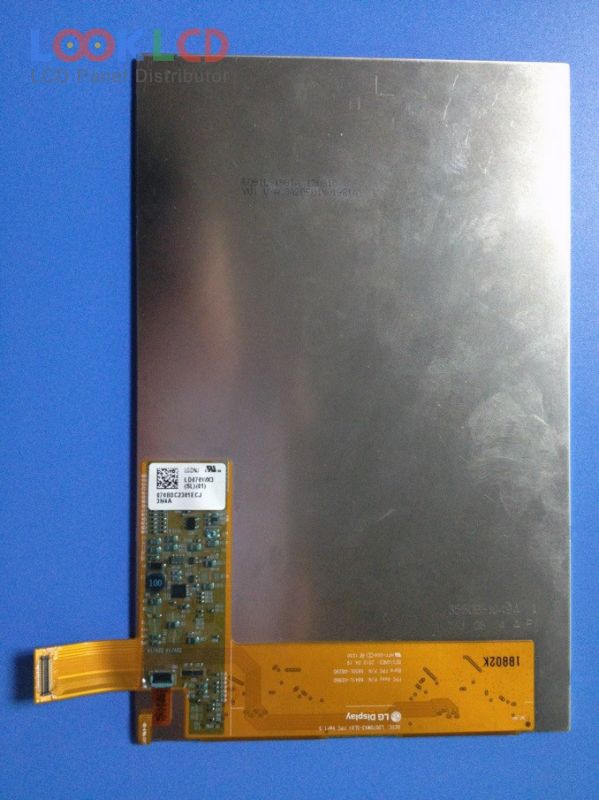

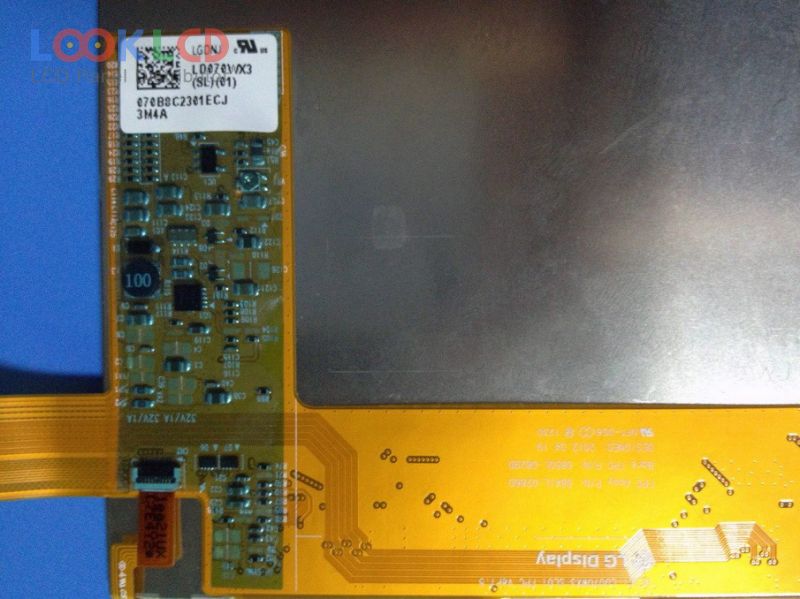

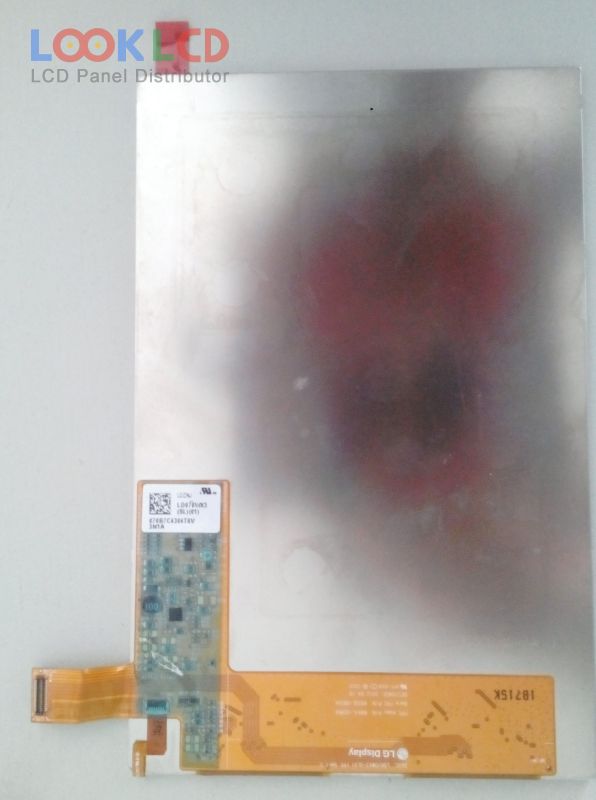

| PartNumber | LD070WX3-SL01 |
| Marca | LG Display |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 800×1280 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | LG Display |
| model de panou | LD070WX3-SL01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×1280 , WXGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 94.2×150.72 mm |
| contur | 104.32×161.67×3.84 mm |
| suprafaţă | Hard coating |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193160% |
| timp de raspuns | 35 (Max.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5 stringsWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 34 pins |
| tensiune de intrare | 3.3/1.8V (Typ.)(VDD/VCC) |
| aplicarea | PAD |
