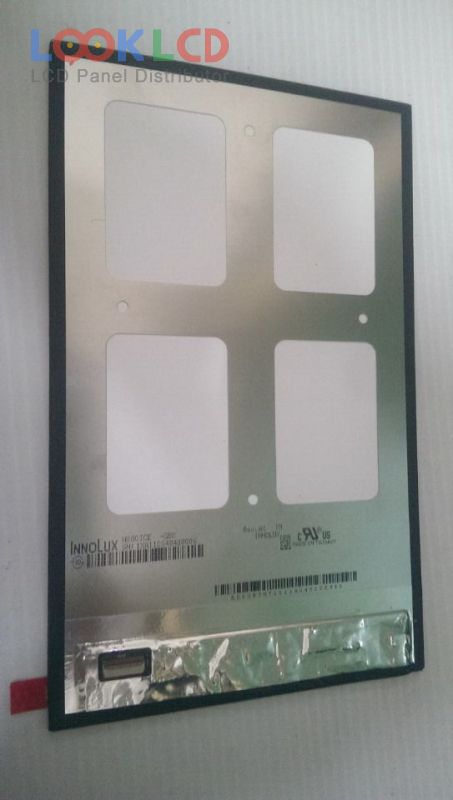

| PartNumber | N080ICE-GB0 Rev.A1 |
| Marca | Innolux |
| mărimea | 8.0 |
| Aplicație | PAD |
| Rezoluţie | 800×1280 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | INNOLUX |
| model de panou | N080ICE-GB0 Rev.A1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 800(RGB)×1280 , WXGA |
| modul de afișare | AAS, Normally Black, Transmissive |
| Zonă activă | 107.64×172.224 mm |
| contur | 114.58×184.09×4.06 mm |
| suprafaţă | Hard coating, Antireflection |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193160% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 stringsWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 31 pins |
| tensiune de intrare | 1.8/3.3V (Typ.)(VDDI/VCI) |
| aplicarea | PAD |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| HJ080IA-01B | Innolux | 8.0 | 1024×768 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TX20D28VM2BAB | KOE | 8.0 | 800×480 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| HT121WX2-210 | HYDIS | 12.1 | 1280×800 |
| HV121X03-100 | HYDIS | 12.1 | 1024×768 |
| LD080UX1-SMA2 | LG Display | 8.0 | 1200×1600 |
| LP125WH2-SLB3 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SPT1 | LG Display | 12.5 | 1366×768 |
| LPM070W425D | JDI | 7.0 | 1200×1920 |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
