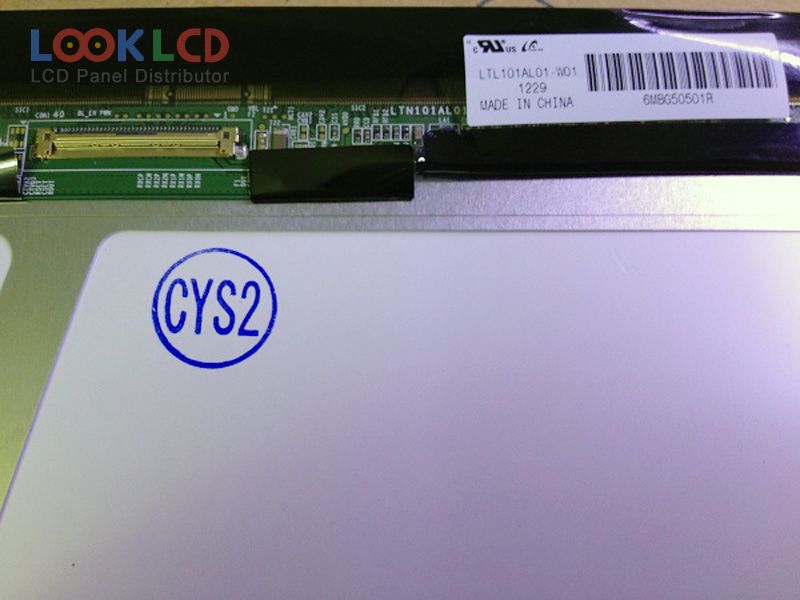

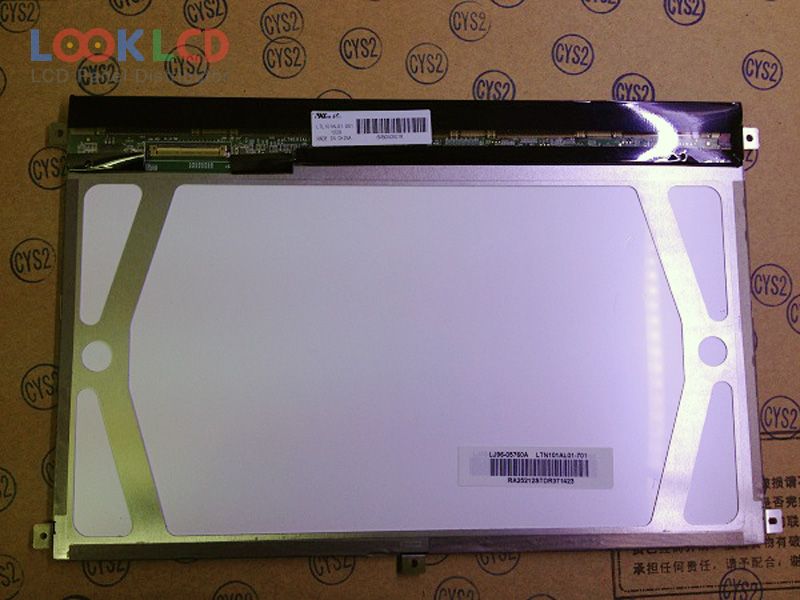

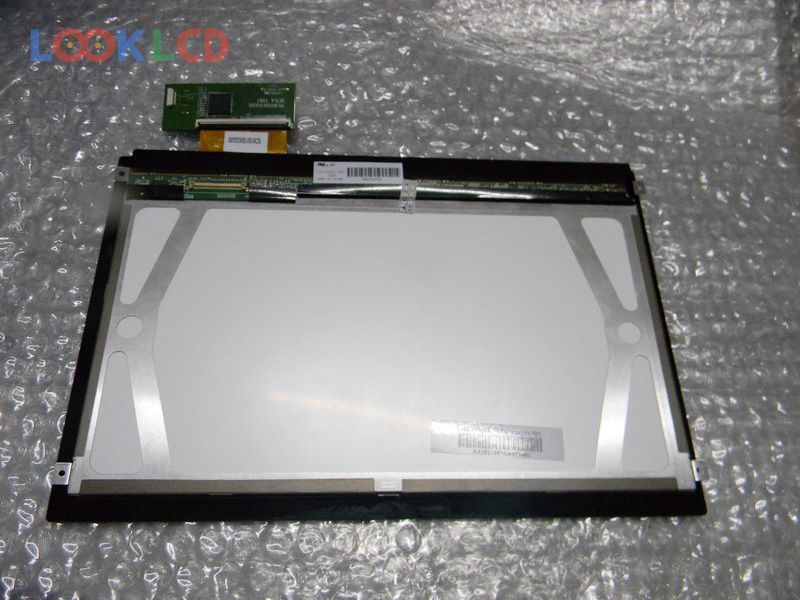

| PartNumber | LTL101AL01-W01 |
| Marca | Samsung |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTL101AL01-W01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLED |
| interfață de semnal | LVDS (1 ch, 6-bit) |
| aplicarea | PAD |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| B080XAN02.0 | AUO | 7.9 | 768×1024 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LP079X01-SMAV | LG Display | 7.9 | 768×1024 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| VVF07H119A90 | Panasonic | 7.0 | 800×1280 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
