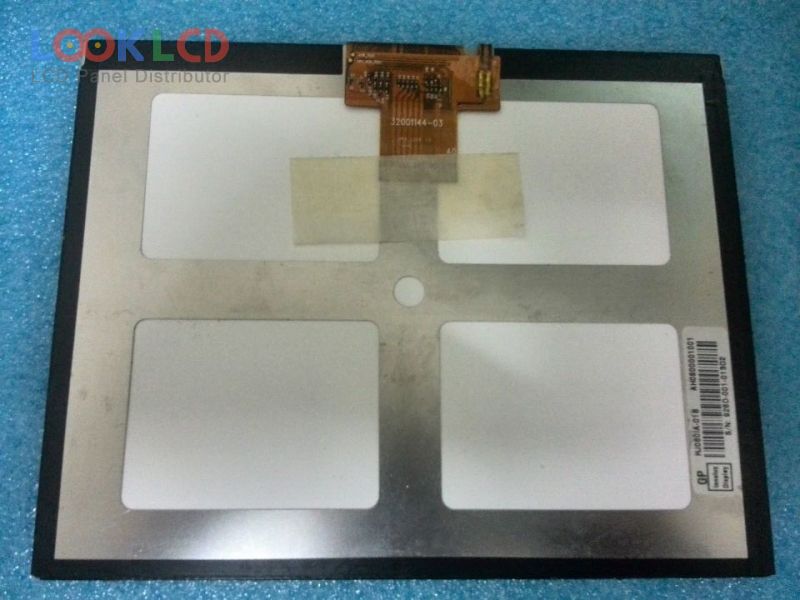

| PartNumber | HJ080IA-01B |
| Marca | Innolux |
| mărimea | 8.0 |
| Aplicație | PAD |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | HJ080IA-01B |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 162.048×121.536 mm |
| contur | 174×136×2.9 mm |
| suprafaţă | Hard coating |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S11PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/10.0/18.9/-7.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | PAD |
