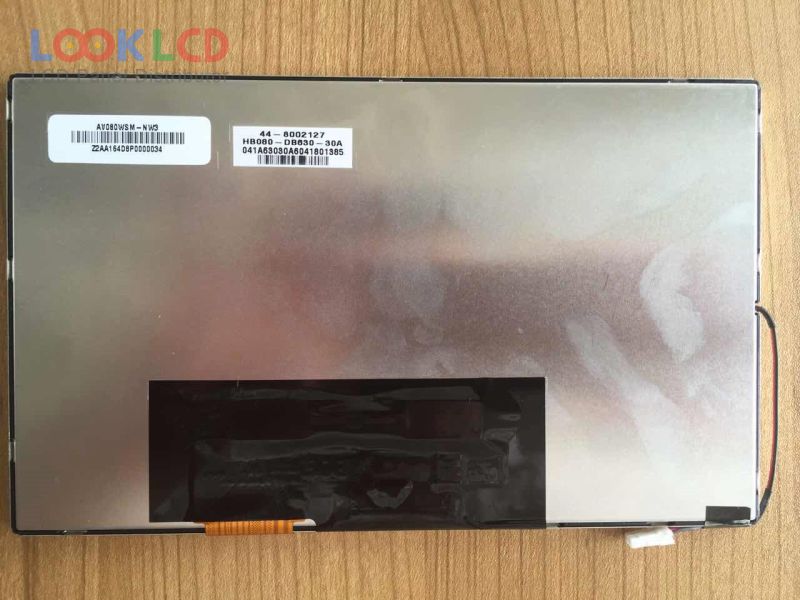

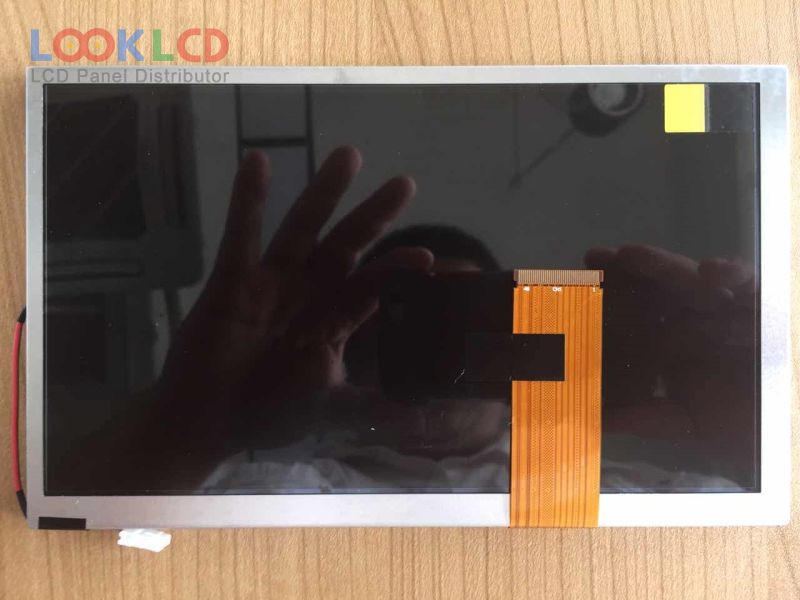

| PartNumber | AV080WSM-NW3 |
| Marca | BOE |
| mărimea | 8.0 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 600 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | AV080WSM-NW3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | ADS, Normally Black, Transmissive |
| Zonă activă | 176.64×99.36 mm |
| contur | 192.8×116.9×7.1 mm |
| suprafaţă | |
| luminozitatea | 600 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S10PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3/11.5/24/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | CNS |
