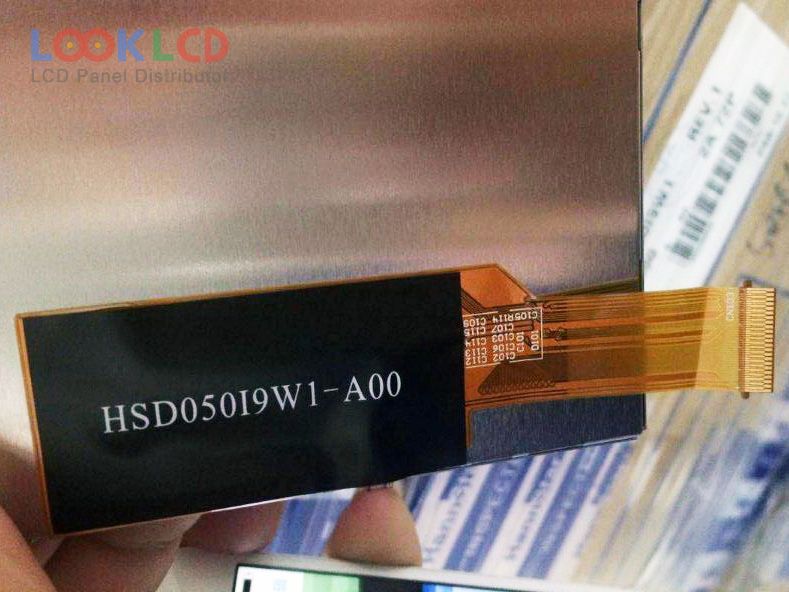

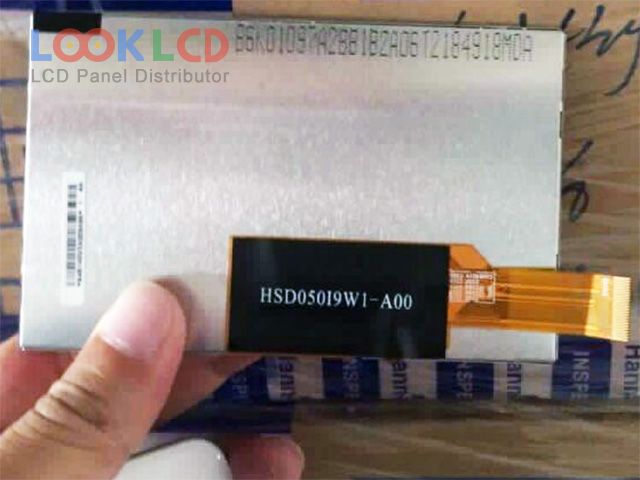

| PartNumber | HSD050I9W1-A00 |
| Marca | HannStar |
| mărimea | 5.0 |
| Aplicație | CNS |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | HannStar |
| model de panou | HSD050I9W1-A00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 480(RGB)×272 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 110.88×62.832 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | |
| culorile afișajului | 16.7M (8-bit), CIE193145% |
| timp de raspuns | 15/17 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| C050FTN01.0 | AUO | 5.0 | 480×234 |
| CLAN050LE61 1XE | CPT | 5.0 | 540×960 |
| H497TLB01.4 | AUO | 5.0 | 720×1280 |
| HSD050I551-A00 | HannStar | 5.0 | 320×234 |
| HSD050I9W1-A00 | HannStar | 5.0 | 480×272 |
| HSD050IDW1-A30 | HannStar | 5.0 | 800×480 |
| LQ050T5DG02 | SHARP | 5.0 | 400×240 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| P50CD4 | E Ink | 5.0 | 320×234 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| C080VW04 V0 | AUO | 8.0 | 800×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| LA080WV8-SL01 | LG Display | 8.0 | 800×480 |
| LB070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| PD050VX6 | E Ink | 5.0 | 640×480 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
