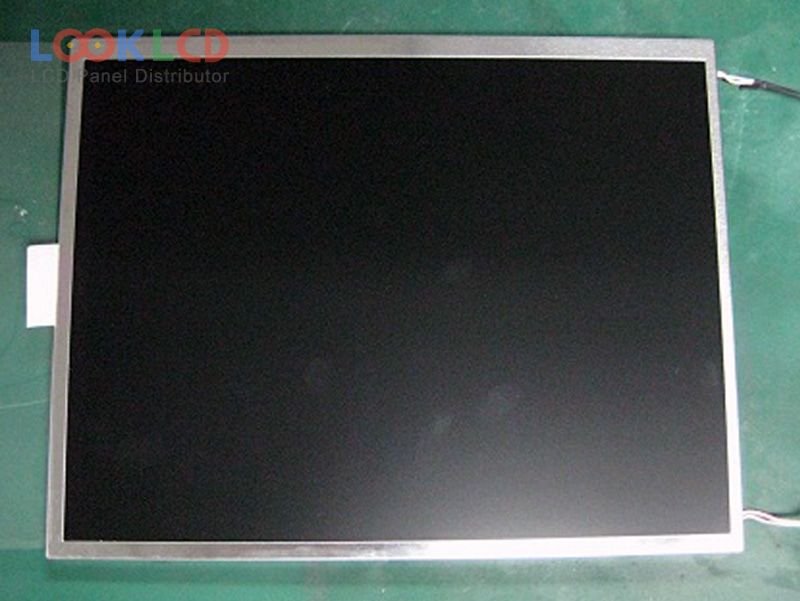

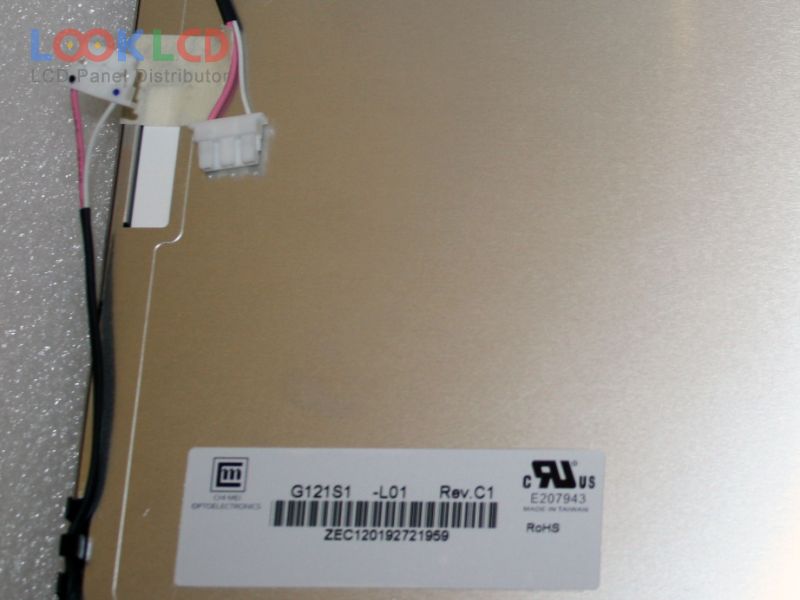

| PartNumber | G121S1-L01 |
| Marca | Innolux |
| mărimea | 12.1 |
| Aplicație | CNS |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 1000:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | G121S1-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | Super MVA, Normally Black, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 260.5×204×12.7 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 13/12 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3/5.0V (Typ.) |
| aplicarea | CNS |
