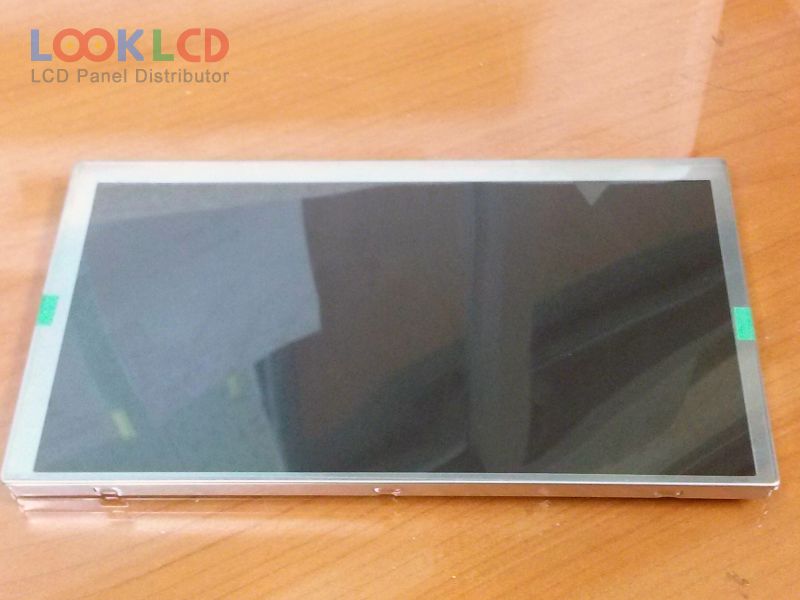

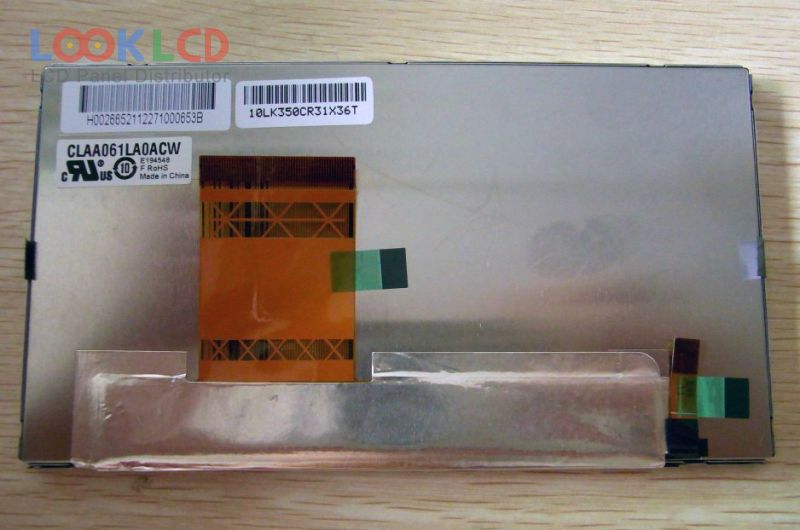

| PartNumber | CLAA061LA0ACW |
| Marca | CPT |
| mărimea | 6.1 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CPT |
| model de panou | CLAA061LA0ACW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.1 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 136.2×72 mm |
| contur | 149×82.9×6.32 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193170% |
| timp de raspuns | 7/13 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S4PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | CNS |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| AT101WSM-NW0-3800(3900) | BOE | 10.1 | 1024×600 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| G150X1-L02 | Innolux | 15.0 | 1024×768 |
| LA061WQ1-TD05 | LG Display | 6.1 | 480×272 |
| NL4827HC19-05A | NLT | 4.3 | 480×272 |
| PA050DS7N1 | E Ink | 5.0 | 320×234 |
| PW100XS1 | E Ink | 10.0 | 640×468 |
| TFD65W46 | TOSHIBA | 6.5 | 480×234 |
