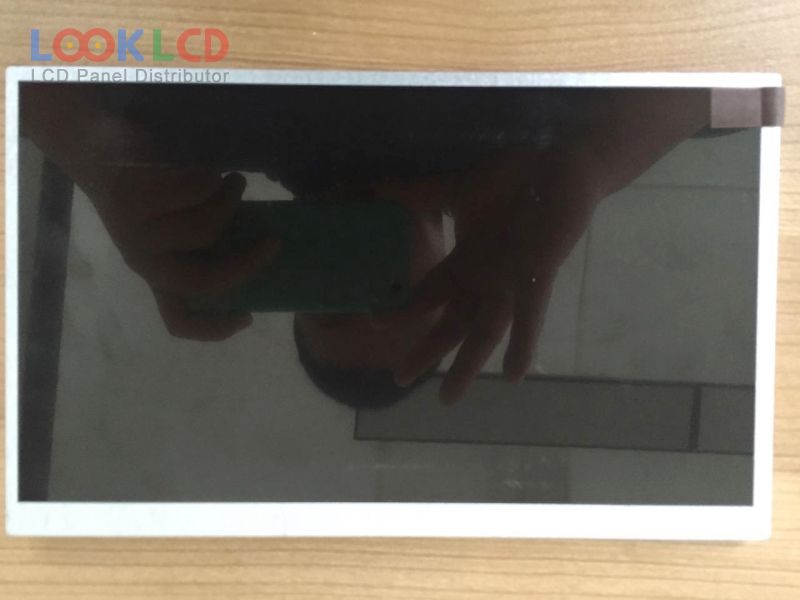

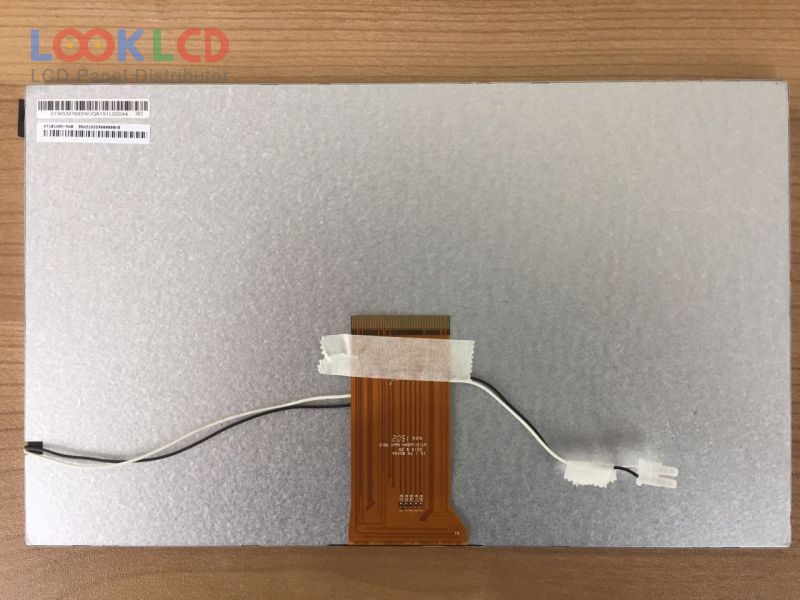

| PartNumber | AT101WSM-NW0-3800(3900) |
| Marca | BOE |
| mărimea | 10.1 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 600:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | AT101WSM-NW0-3800(3900) |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 235×143×4.8 mm |
| suprafaţă | Antiglare (Haze 25%) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Tf) |
| unghi de vedere | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S7PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 60 pins |
| tensiune de intrare | 3.3/9.6V (Typ.)(VDD/AVDD) |
| aplicarea | CNS |
