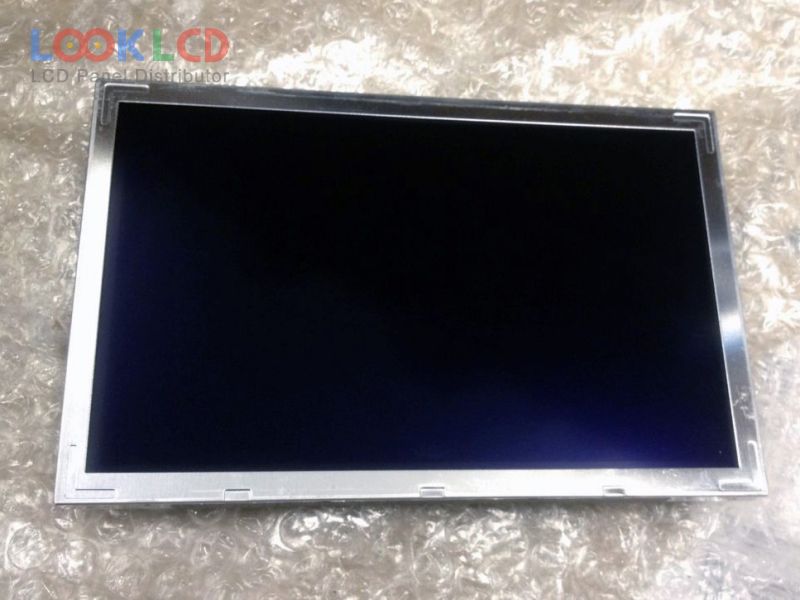

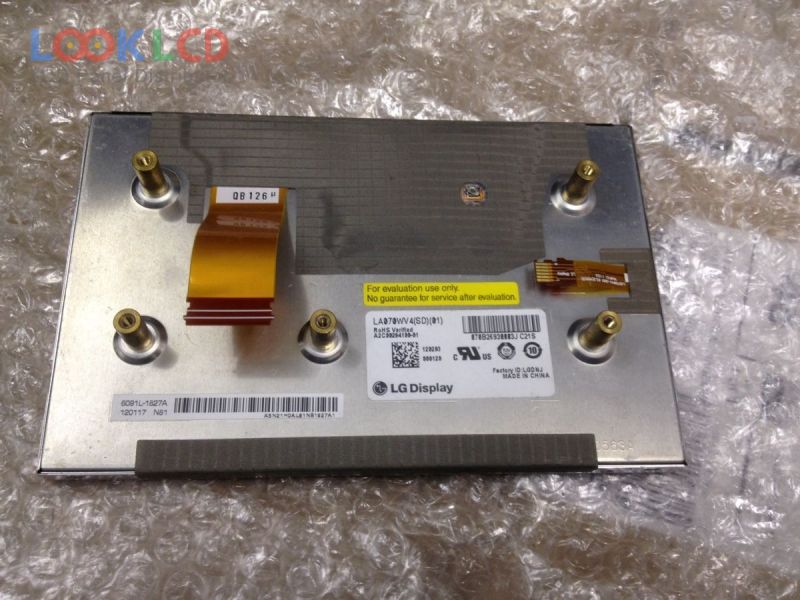

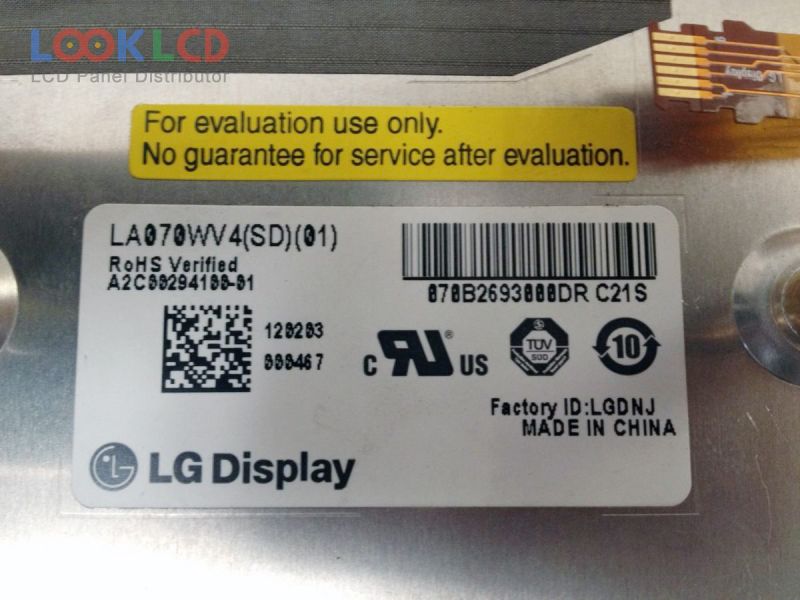

| PartNumber | LA070WV4-SD01 |
| Marca | LG Display |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 470 |
| CR | 900:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | LG Display |
| model de panou | LA070WV4-SD01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 170×109.6 mm |
| suprafaţă | Antiglare (Haze 11%) |
| luminozitatea | 470 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193165% |
| timp de raspuns | 15/10 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S2PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| C065GW03 V0 | AUO | 6.5 | 400×240 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| LS080HT111 | Innolux | 8.0 | 800×600 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
