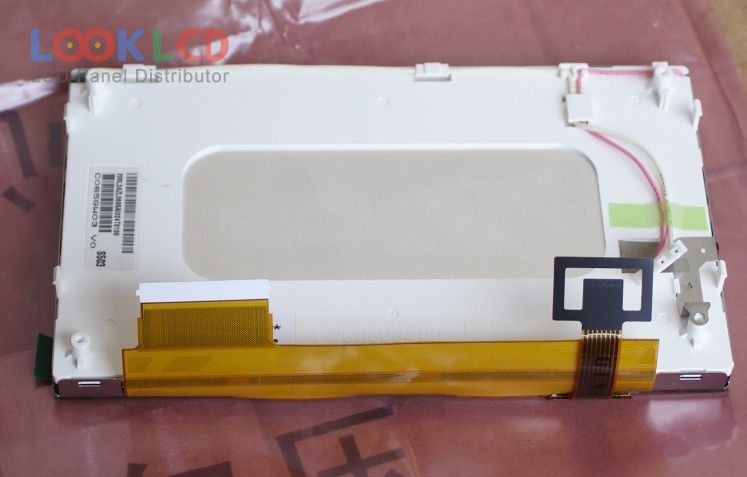

| PartNumber | C065GW03 V0 |
| Marca | AUO |
| mărimea | 6.5 |
| Aplicație | CNS |
| Rezoluţie | 400×240 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | C065GW03 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.5 inch |
| rezoluţie | 400(RGB)×240 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 143.4×79.326 mm |
| contur | 155×90.83 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 15/20 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 55 pins |
| tensiune de intrare | 3.3/9.8/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | CNS |
