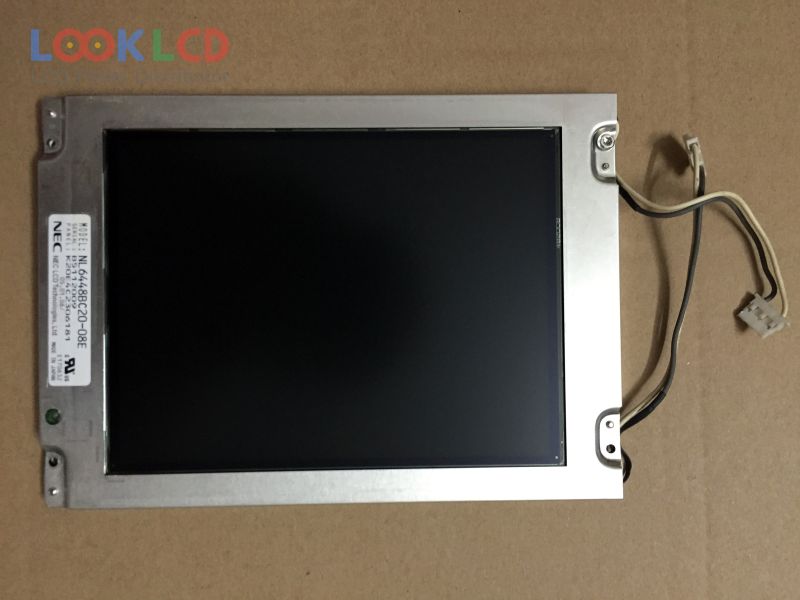

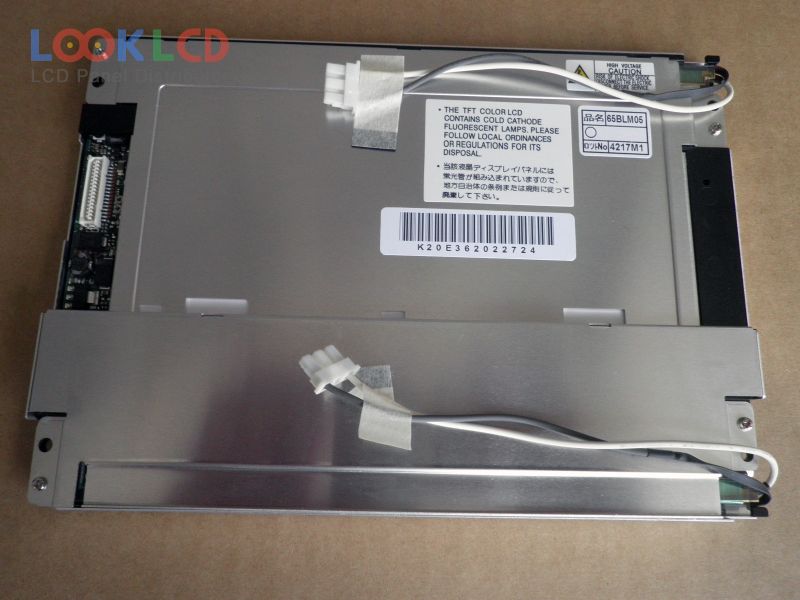

| PartNumber | NL6448BC20-08E |
| Marca | NLT |
| mărimea | 6.5 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL6448BC20-08E |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.5 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 132.48×99.36 mm |
| contur | 178.8×126.8 mm |
| suprafaţă | Antiglare (Haze 16%), Hard coating (2H), Antireflection |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 250:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193142% |
| timp de raspuns | 13/36 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB, 31 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplicarea | IA |
