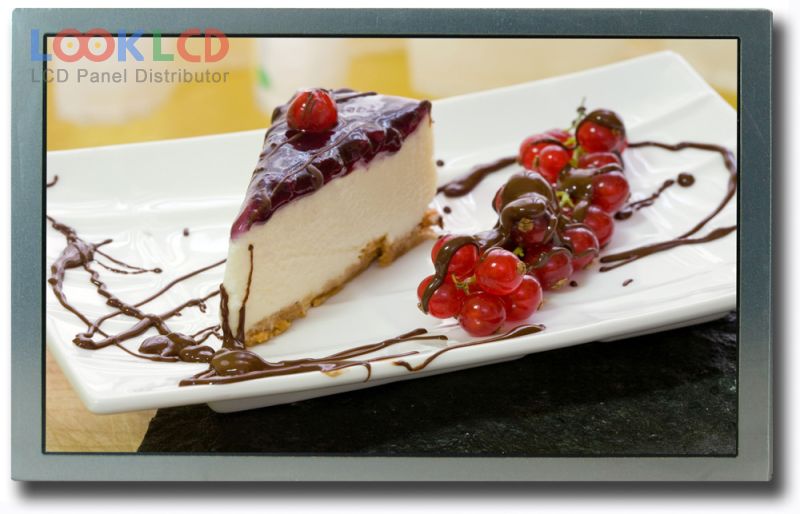

| PartNumber | T-55561D090J-LW-A-AAN |
| Marca | Kyocera |
| mărimea | 9.0 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 900:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | OPTREX |
| model de panou | T-55561D090J-LW-A-AAN 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 196.8×118.08 mm |
| contur | 219×136.2 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 12/12 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S2PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
