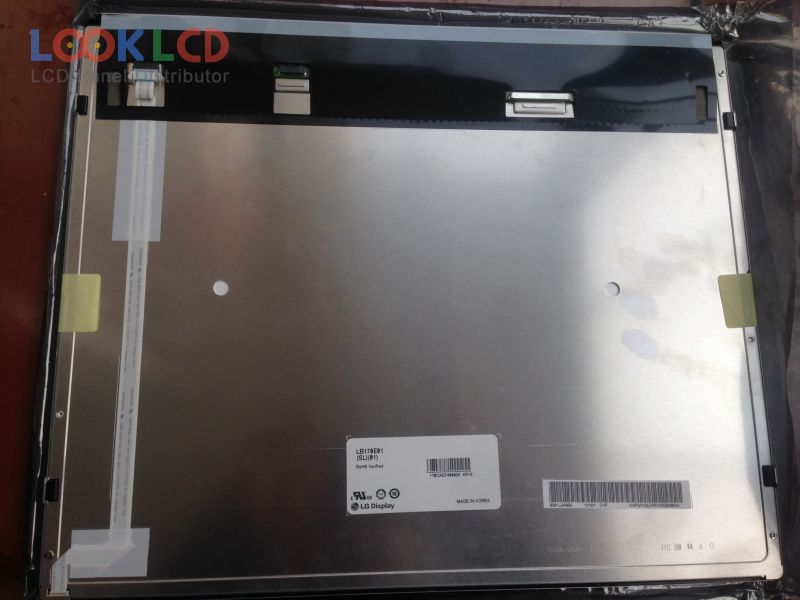

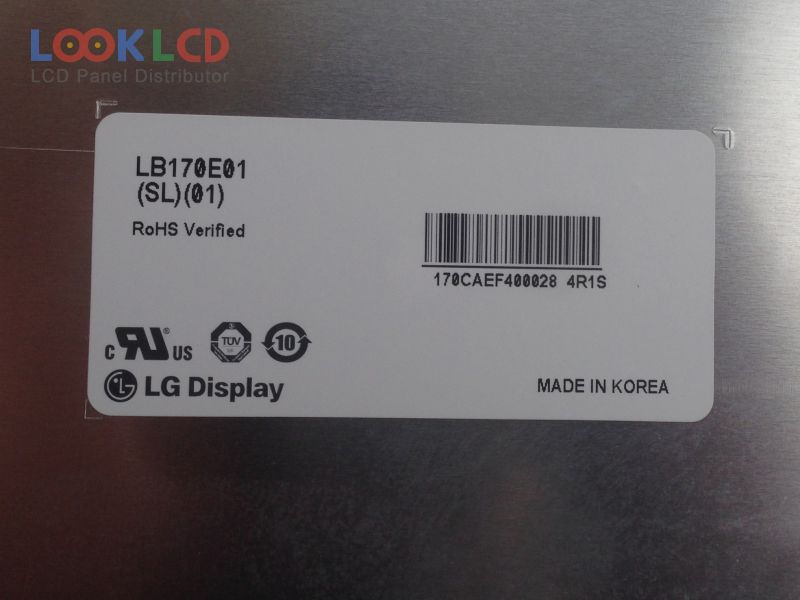

| PartNumber | LB170E01-SL01 |
| Marca | LG Display |
| mărimea | 17.0 |
| Aplicație | IA |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LB170E01-SL01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 337.92×270.336 mm |
| contur | 368×306×14.8 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 13/9 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | IA |
