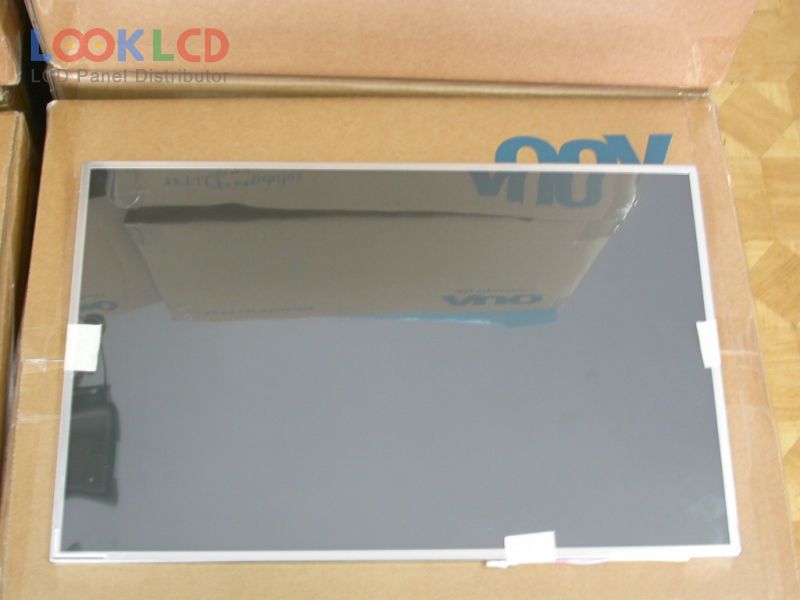

| PartNumber | B170PW03 V1 |
| Marca | AUO |
| mărimea | 17.0 |
| Aplicație | NBPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B170PW03 V1 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 367.2×229.5 mm |
| contur | 382.2×244.5×6.8 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 12/4 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B170PW01 V1 | AUO | 17.0 | 1440×900 |
| B170PW02 V0 | AUO | 17.0 | 1440×900 |
| B170PW03 V0 | AUO | 17.0 | 1440×900 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| B170PW03 V3 | AUO | 17.0 | 1440×900 |
| B170PW03 V4 | AUO | 17.0 | 1440×900 |
| B170PW03 V5 | AUO | 17.0 | 1440×900 |
| B170PW06 V2 | AUO | 17.0 | 1440×900 |
| B170PW06 V3 | AUO | 17.0 | 1440×900 |
| B170PW07 V0 | AUO | 17.0 | 1440×900 |
| B154PW01 V1 | AUO | 15.4 | 1440×900 |
| B173RW01 V5 | AUO | 17.3 | 1600×900 |
| HN116WX1-203 | BOE | 11.6 | 1366×768 |
| LTN104S2-L01 | Samsung | 10.4 | 800×600 |
| LTN121AT02-A01 | Samsung | 12.1 | 1280×800 |
| LTN154P3-L02 | Samsung | 15.4 | 1680×1050 |
| LTN154X2-L02 | Samsung | 15.4 | 1280×800 |
| LTN160AT02-N01 | Samsung | 16.0 | 1366×768 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| QD14XL20 Rev.03 | QDI | 14.1 | 1024×768 |
