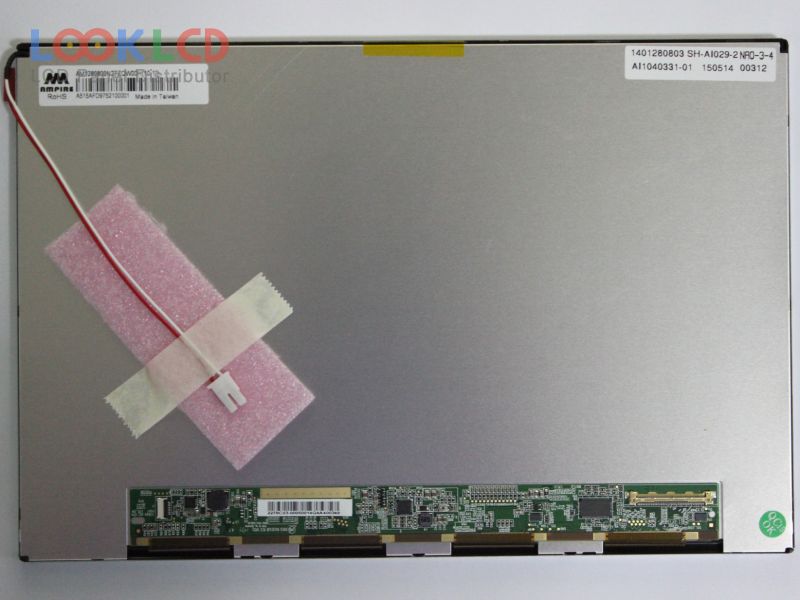

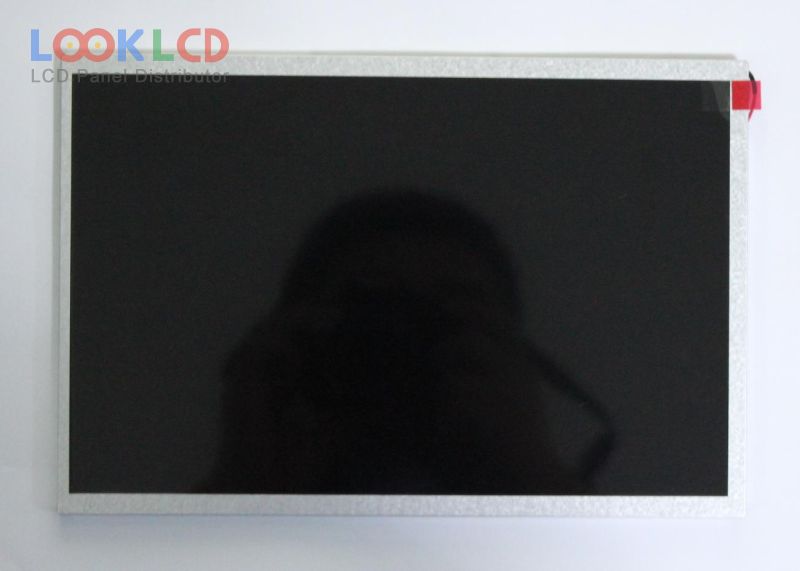

| PartNumber | AM-1280800N2TZQW-00H |
| Marca | AMPIRE |
| mărimea | 10.1 |
| Aplicație | IA |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 1000 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AMPIRE |
| model de panou | AM-1280800N2TZQW-00H |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 231×154.4×6.2 mm |
| suprafaţă | Hard coating |
| luminozitatea | 1000 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193145% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S6PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
