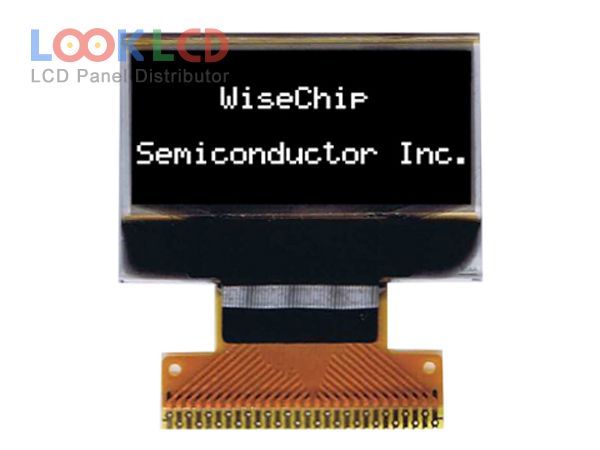

| PartNumber | UG-9639TSWEG03 |
| Marca | WiseChip |
| mărimea | 0.82 |
| Aplicație | IA |
| Rezoluţie | 96×39 |
| Compoziţie | OLED |
| Luminozitate | 100 |
| CR | 10000:1 |
| Culori | Mono(White) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI/I²C |
| marca panoului | WiseChip |
| model de panou | UG-9639TSWEG03 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 0.82 inch |
| rezoluţie | 96×39 |
| Zonă activă | 19.372×7.858 mm |
| contur | 23.8×16.2×1.4 mm |
| suprafaţă | |
| luminozitatea | 100 cd/m² (Typ.) |
| Raport de contrast | 10000 : 1 (Min.) |
| culorile afișajului | Mono(White) (1-bit) |
| unghi de vedere | |
| driver ic | COG Built-in SSD1306 |
| interfață de semnal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| tensiune de intrare | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| aplicarea | IA |
