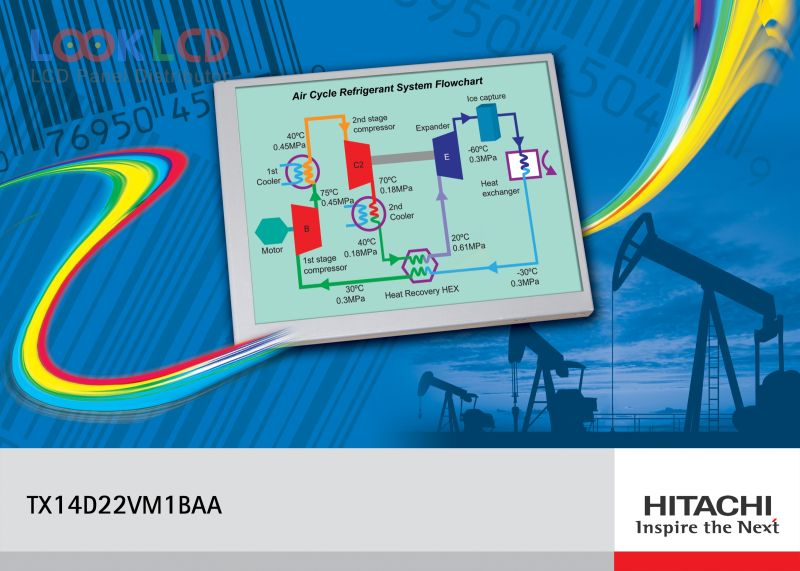

| PartNumber | TX14D22VM1BAA |
| Marca | KOE |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | HITACHI |
| model de panou | TX14D22VM1BAA |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 131×102.2×7.1 mm |
| suprafaţă | |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/60 (Typ.)(CR≥5)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S5PWLEDWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.)(VDD) |
| aplicarea | IA |
