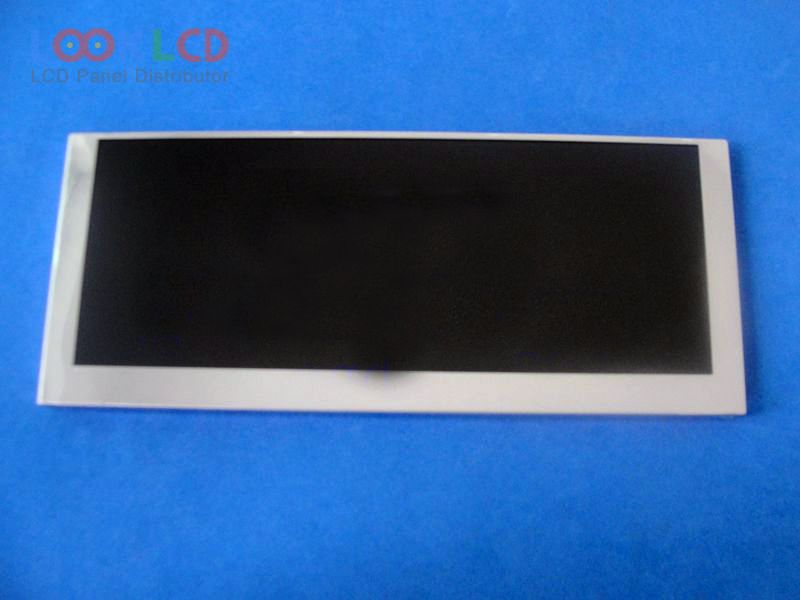

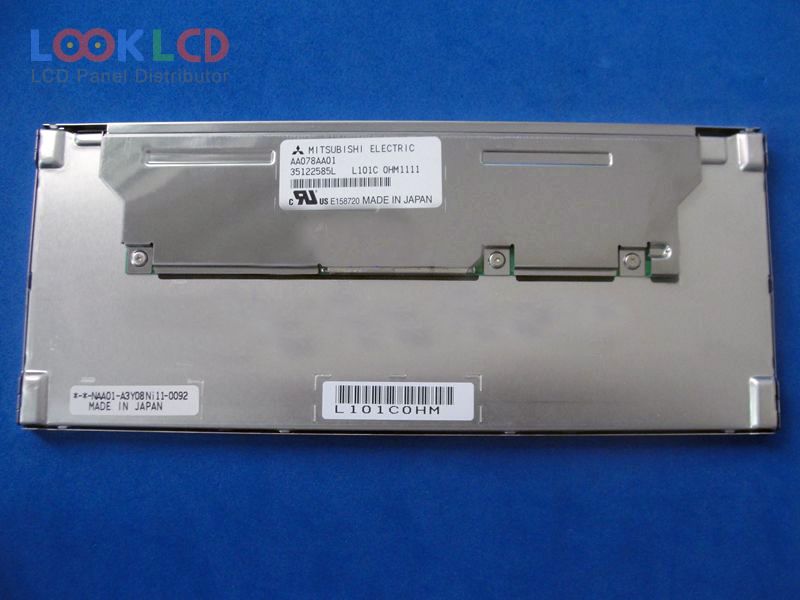

| PartNumber | AA078AA01 |
| Marca | Mitsubishi |
| mărimea | 7.8 |
| Aplicație | IA |
| Rezoluţie | 800×300 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 1000:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | Mitsubishi |
| model de panou | AA078AA01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.8 inch(8/15 cut of 8.5") |
| rezoluţie | 800(RGB)×300 |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 184.8×69.3 mm |
| contur | 207×86 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 12/12 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit) |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | IA |
| AA070MC01 | Mitsubishi | 7.0 | 800×480 |
| AA070MC11 | Mitsubishi | 7.0 | 800×480 |
| AA070ME01 | Mitsubishi | 7.0 | 800×480 |
| AA070ME01-DA1 | Mitsubishi | 7.0 | 800×480 |
| AA078AA01 | Mitsubishi | 7.8 | 800×300 |
| EDMGRB8KHF | Panasonic | 7.8 | 640×480 |
| LTM07C383 | TOSHIBA | 7.8 | 480×234 |
| ND078-101A1 | SEBO | 7.8 | 1280×400 |
| AA104VH02 | Mitsubishi | 10.4 | 640×480 |
| EL240.128.45 INT | PLANAR | 4.8 | 240×128 |
| EL320.256-FD8 V2 | PLANAR | 4.8 | 320×256 |
| LM238WR2-SLA1 | LG Display | 23.8 | 3840×2160 |
| LM64C15P | SHARP | 9.4 | 640×480 |
| LQ121S1LG41 | SHARP | 12.1 | 800×600 |
| LQ64D341 | SHARP | 6.4 | 640×480 |
| LQ9D01C | SHARP | 8.4 | 640×480 |
| LTD104C11S | TOSHIBA | 10.4 | 640×480 |
| MD480L640PG4 | Panasonic | 10.4 | 640×480 |
