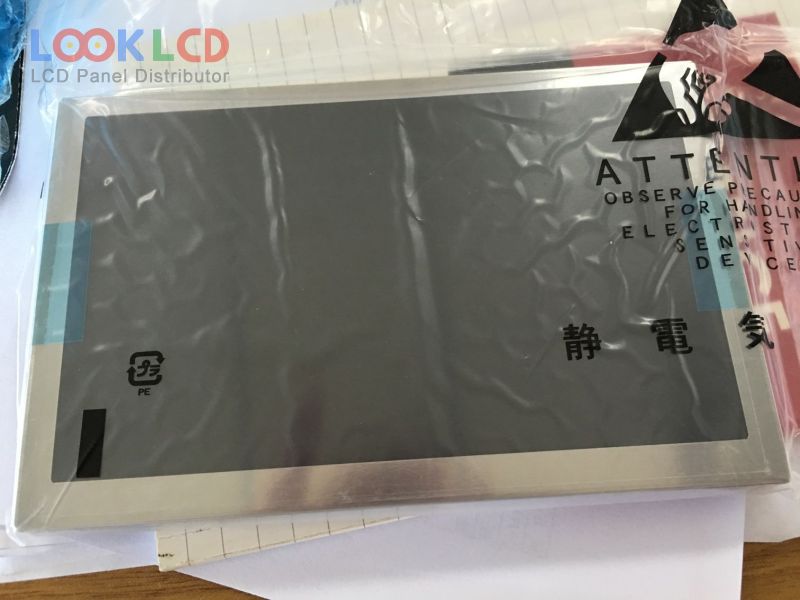

| PartNumber | AA070MC11 |
| Marca | Mitsubishi |
| mărimea | 7.0 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 1300 |
| CR | 1000:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | Mitsubishi |
| model de panou | AA070MC11 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 169.8×109.7×9.4 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 1300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| timp de raspuns | 12/12 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 stringsWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
