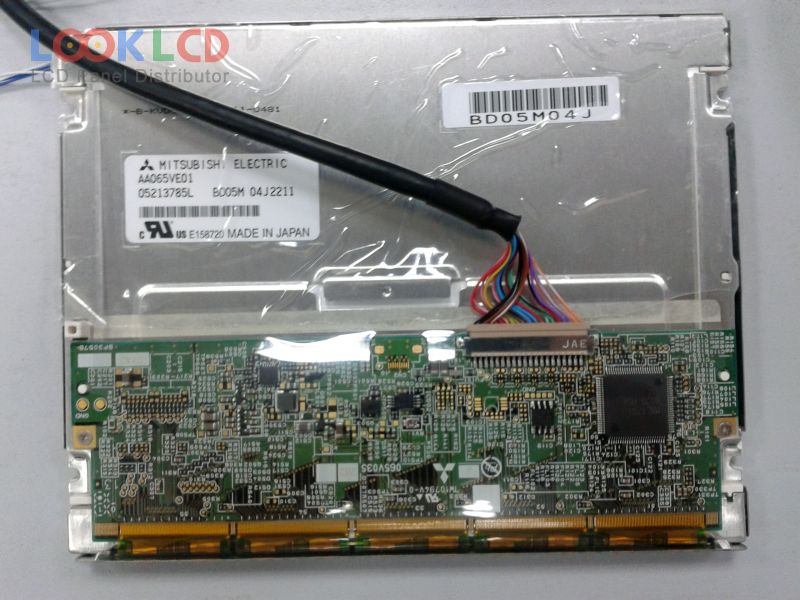

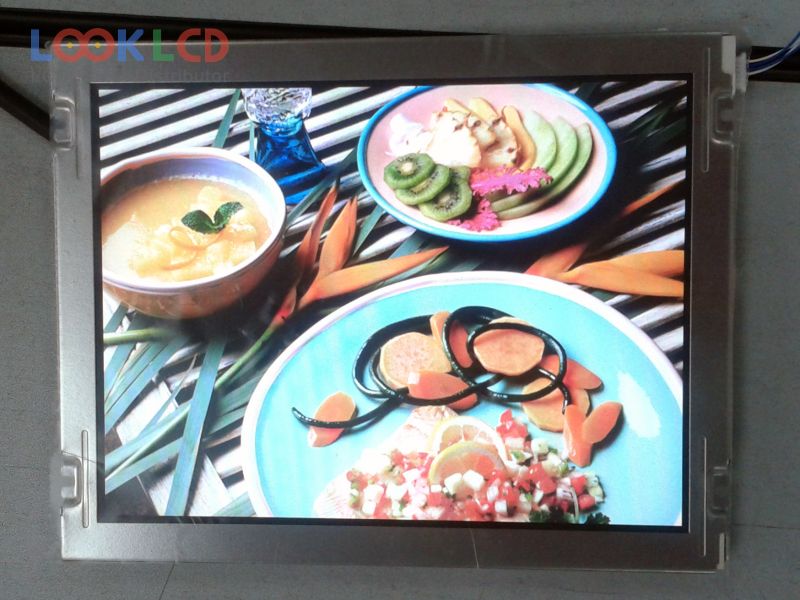

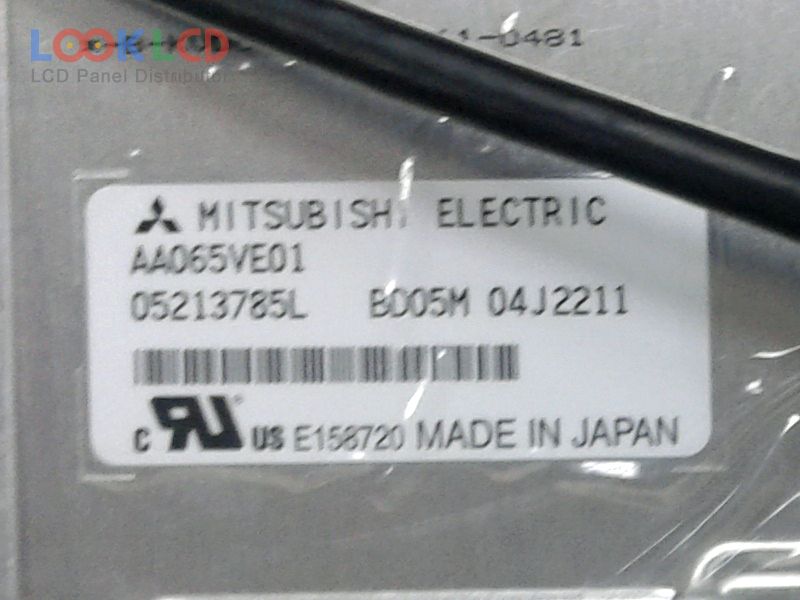

| PartNumber | AA065VE01 |
| Marca | Mitsubishi |
| mărimea | 6.5 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 700 |
| CR | 600:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | Mitsubishi |
| model de panou | AA065VE01 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.5 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 132.48×99.36 mm |
| contur | 154×121×11.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 700 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| timp de raspuns | 6/19 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 stringsWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| AA065VB01 | Mitsubishi | 6.5 | 640×480 |
| AA065VD01 | Mitsubishi | 6.5 | 640×480 |
| AA065VE01 | Mitsubishi | 6.5 | 640×480 |
| AA065VE11ADA11 | Mitsubishi | 6.5 | 640×480 |
| C065GW03 V0 | AUO | 6.5 | 400×240 |
| C065GW04 V2 | AUO | 6.5 | 400×240 |
| L5F30818P03 | SONY | 6.5 | 800×480 |
| LTA065A043F | TOSHIBA | 6.5 | 640×480 |
| LTA065B626A | TOSHIBA | 6.5 | 400×234 |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
| EL160.80.50 | Lumineq | 3.5 | 160×80 |
| KHB104SV1AD-G83 | Kyocera | 10.4 | 800×600 |
| L5F30812P00 | Epson | 13.3 | 1024×768 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| LQ10DH15 | SHARP | 10.4 | 640×480 |
| LQ150X1LG91 | SHARP | 15.0 | 1024×768 |
| LQ190N1LW01 | SHARP | 19.0 | 1680×1050 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| P50AN3 | E Ink | 5.0 | 320×234 |
| UG-2896GDEAF11 | WiseChip | 1.3 | 128×96 |
