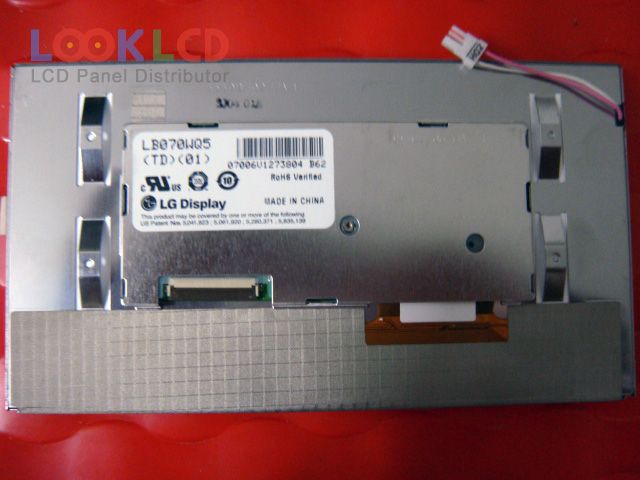

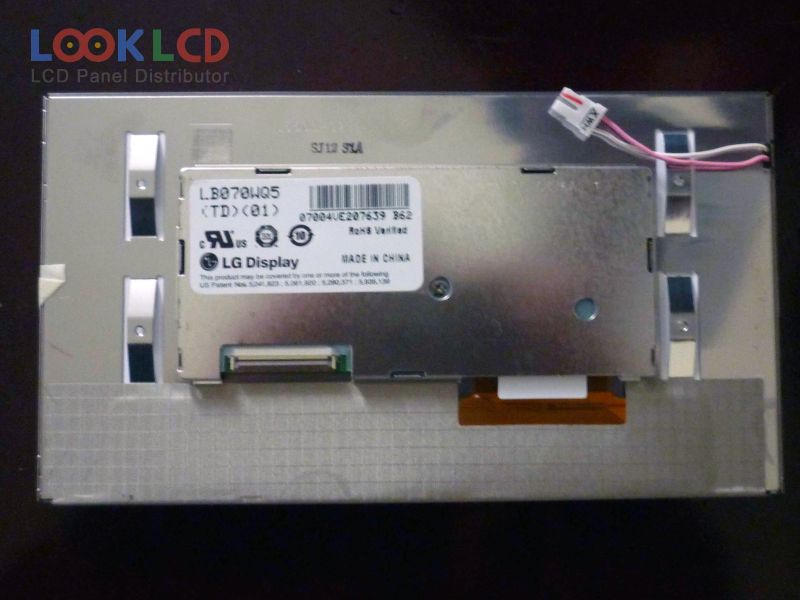

| PartNumber | LB070WQ5-TD01 |
| Marca | LG Display |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 480×240 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | LG.Philips LCD |
| model de panou | LB070WQ5-TD01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×240 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 155.952×82.8 mm |
| contur | 168.8×93.5 mm |
| suprafaţă | Antiglare |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | CCFL |
| interfață de semnal | TTL (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | CNS |
