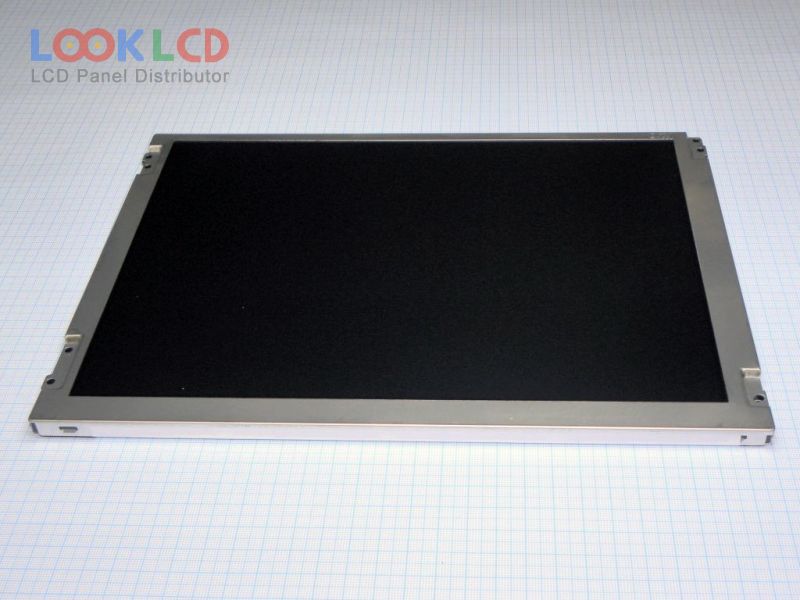

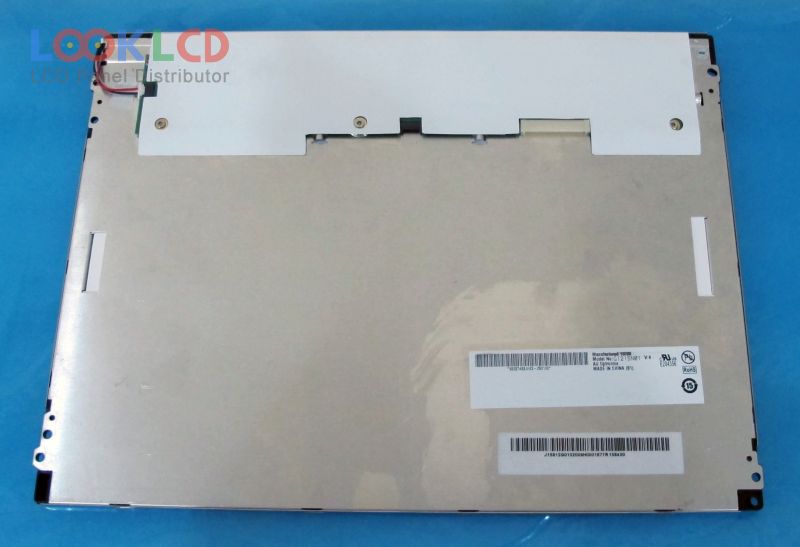

| PartNumber | G121SN01 V4 |
| Marca | AUO |
| mărimea | 12.1 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 700:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | G121SN01 V4 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 279×209 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193155% |
| timp de raspuns | 25/10 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/65/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S2PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| G121SN01 V0 | AUO | 12.1 | 800×600 |
| G121SN01 V1 | AUO | 12.1 | 800×600 |
| G121SN01 V3 | AUO | 12.1 | 800×600 |
| G121SN01 V4 | AUO | 12.1 | 800×600 |
| G121STN01.0 | AUO | 12.1 | 800×600 |
| LQ121S1LG79 | SHARP | 12.1 | 800×600 |
| LTN121W1-L03 | Samsung | 12.1 | 1280×800 |
| TM121XG-02L10 | SANYO | 12.1 | 1024×768 |
| AA121TH01-DE1 | Mitsubishi | 12.1 | 1280×800 |
| KCB6448BSTT-X5 | Kyocera | 10.4 | 640×480 |
| LMBHAT014G16CKS | NAN YA | 5.4 | 240×128 |
| M101GWN9 R0 | IVO | 10.1 | 1024×600 |
| NL3224AC35-05 | NLT | 5.5 | 320×240 |
| NL6448BC18-01 | NLT | 5.7 | 640×480 |
| NL6448BC26-09C | NLT | 8.4 | 640×480 |
| NL8060BC26-27 | NLT | 10.4 | 800×600 |
| SX19V007 | KOE | 7.5 | 640×480 |
| TFD50W72MS | TOSHIBA | 5.0 |
