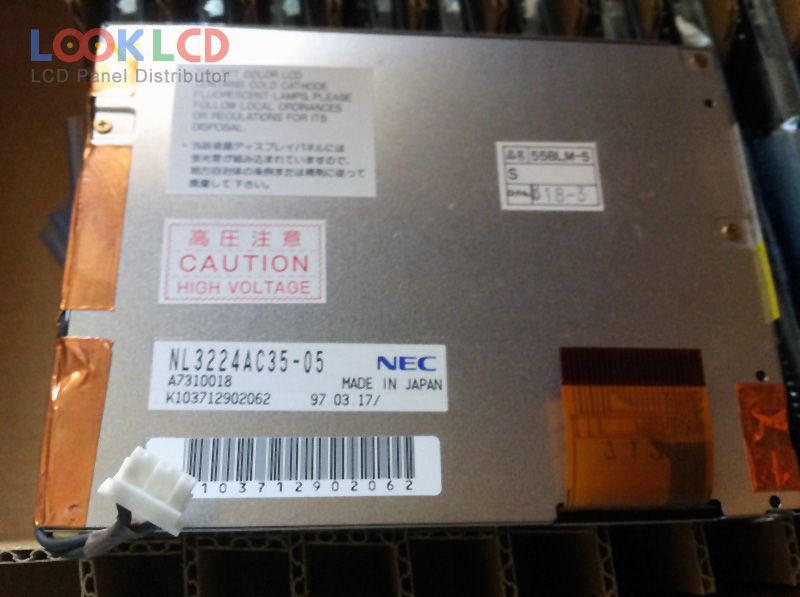

| PartNumber | NL3224AC35-05 |
| Marca | NLT |
| mărimea | 5.5 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | Full color |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | NEC |
| model de panou | NL3224AC35-05 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 111.36×83.52 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | |
| culorile afișajului | Full color |
| timp de raspuns | |
| unghi de vedere | |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Analog RGB + Composite Video |
| aplicarea | IA |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| NL3224AC35-05 | NLT | 5.5 | 320×240 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| NL3224AC35-10 | NLT | 5.5 | 320×240 |
| NL3224BC35-20 | NLT | 5.5 | 320×240 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| NL3224BC35-22 | NLT | 5.5 | 320×240 |
| AA070MC01 | Mitsubishi | 7.0 | 800×480 |
| AA104XD12--G1 | Mitsubishi | 10.4 | 1024×768 |
| DLC1500AMG-1 | Other | 15.0 | 1024×768 |
| DMF6104NF-FW | Kyocera | 5.3 | 256×128 |
| HSD190MEN6-A00 | HannStar | 19.0 | 1280×1024 |
| HT150X02-100 | BOE | 15.0 | 1024×768 |
| LM290WW2-SSA1 | LG Display | 29.0 | 2560×1080 |
| LM64P839 | SHARP | 9.4 | 640×480 |
| LTB190E3-L01 | Samsung | 19.0 | 1280×1024 |
| TX20D28VM2BAB | KOE | 8.0 | 800×480 |
