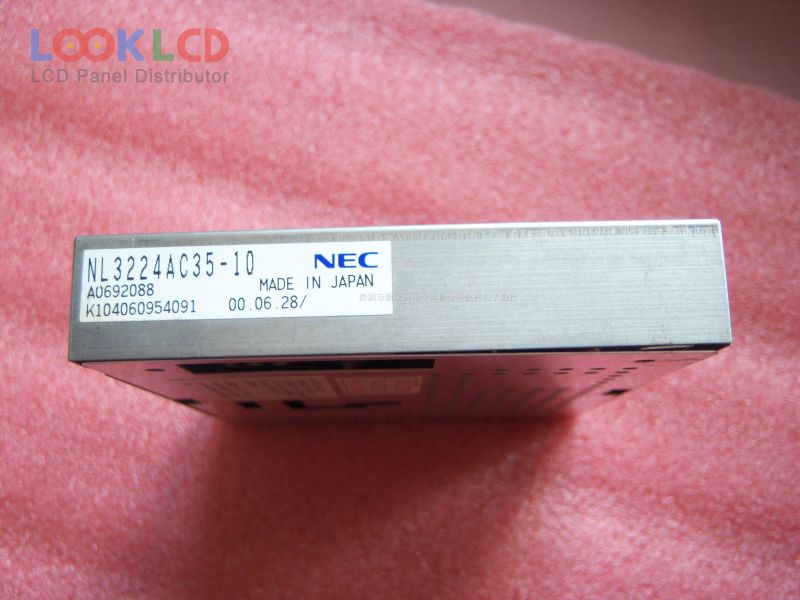

| PartNumber | NL3224AC35-10 |
| Marca | NLT |
| mărimea | 5.5 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 85:1 |
| Culori | Full color |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | NEC |
| model de panou | NL3224AC35-10 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 111.36×83.52 mm |
| contur | 134×110 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (2H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 85:1 (Typ.) |
| culorile afișajului | Full color , CIE193150% |
| timp de raspuns | 16/44 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | Analog RGB, 24 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | IA |
