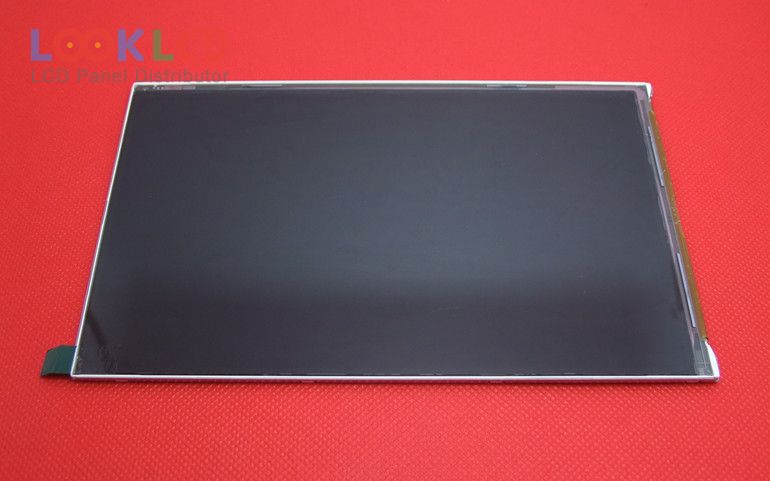

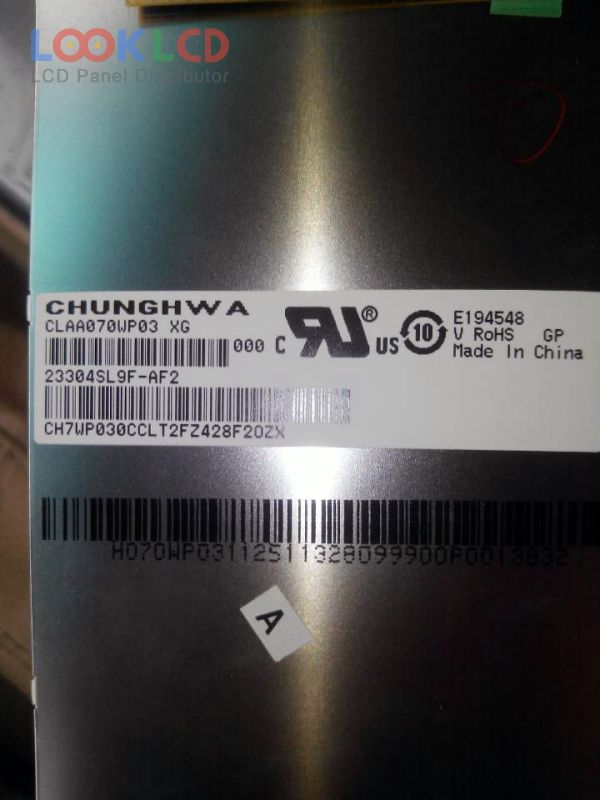

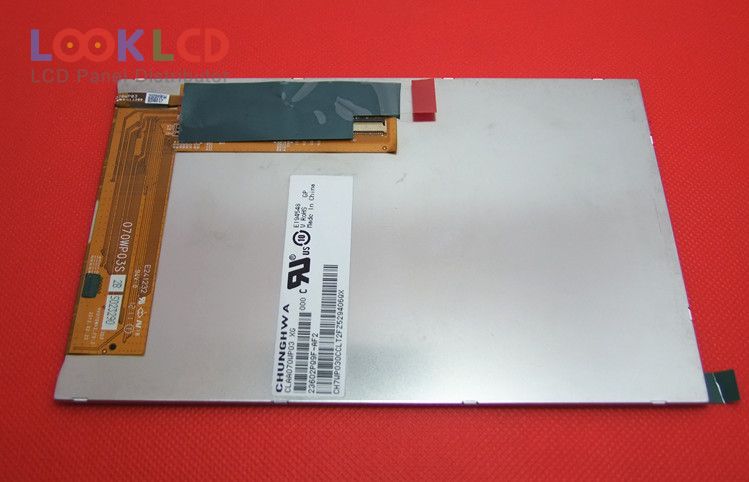

| PartNumber | CLAA070WP03XG |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 800×1280 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 700:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA070WP03XG |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×1280 , WXGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 94.2×150.72 mm |
| contur | 104.32×161.67×4.05 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| CLAA070LC0ECT | CPT | 7.0 | 800×480 |
| CLAA070LD0DCW | CPT | 7.0 | 800×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ05CW | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| CLAA100XA22XV | CPT | 10.0 | 1024×768 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| P120ZDG-BF2 | Innolux | 12.0 | 2160×1440 |
| TM080TDHG01 | Tianma | 8.0 | 1024×768 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
