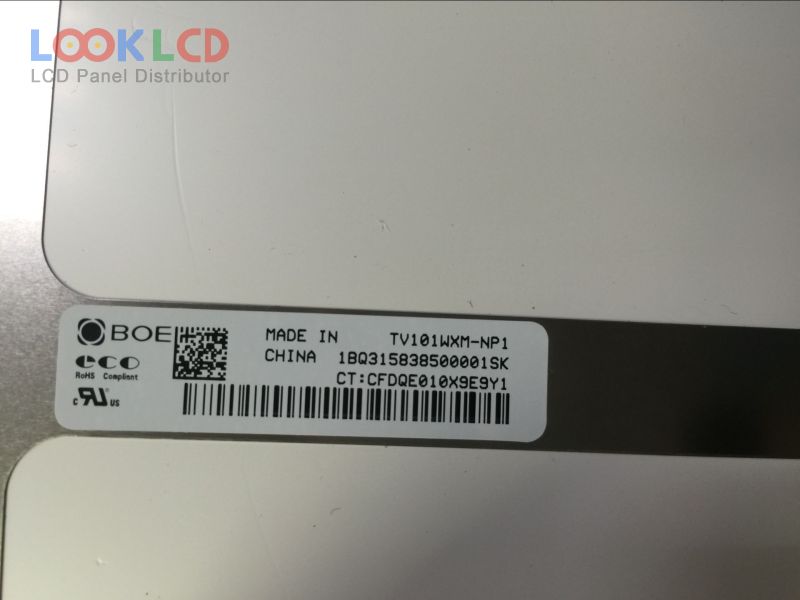

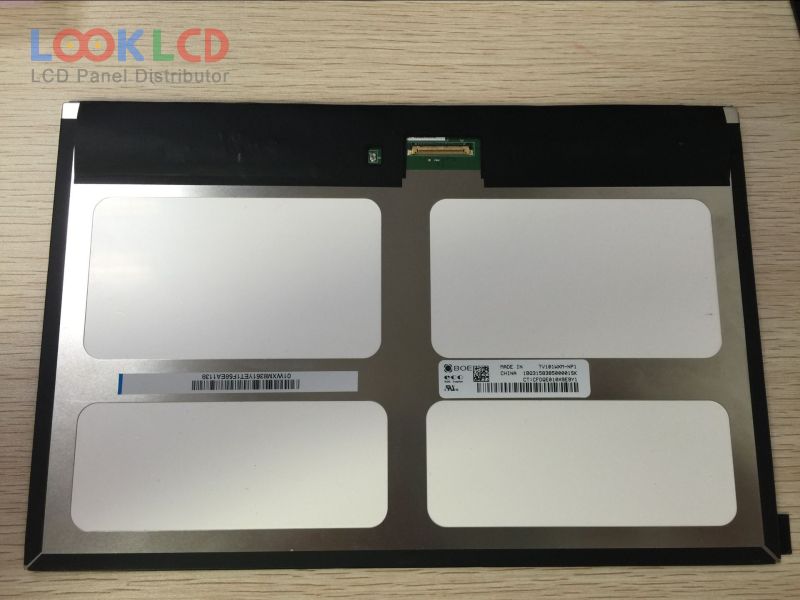

| PartNumber | TV101WXM-NP1 |
| Marca | BOE |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | BOE |
| model de panou | TV101WXM-NP1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | ADS, Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 228.3×149.05×4.4 mm |
| suprafaţă | Glare (Haze 0%), Hard coating |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193149% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |

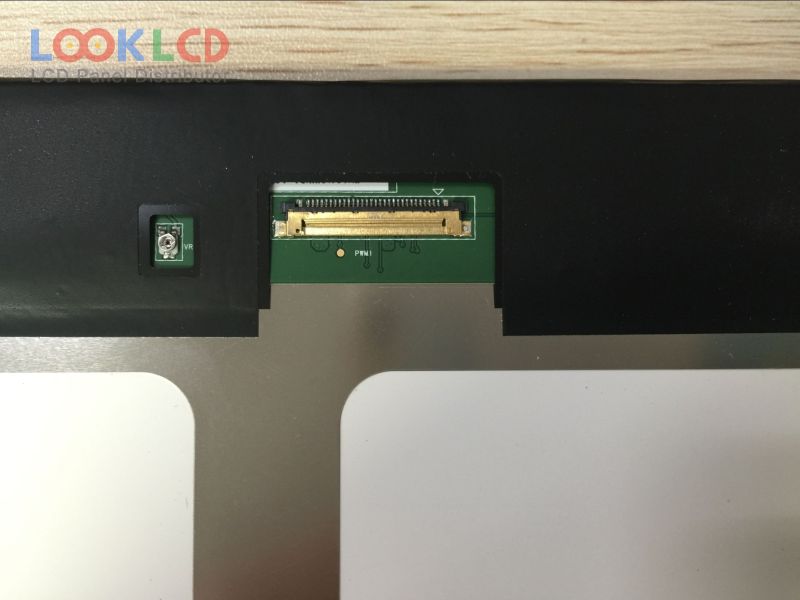

| interfață de semnal | eDP (1 Lane), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| LD101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
| B080XAN02.0 | AUO | 7.9 | 768×1024 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| HX121WX1-100 | HYDIS | 12.1 | 1280×800 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LP097X02-SLN1 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
