| PartNumber | G101STN01.2 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | IA |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 500:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | G101STN01.2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 235×143×5.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193145% |
| timp de raspuns | 7/9 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |

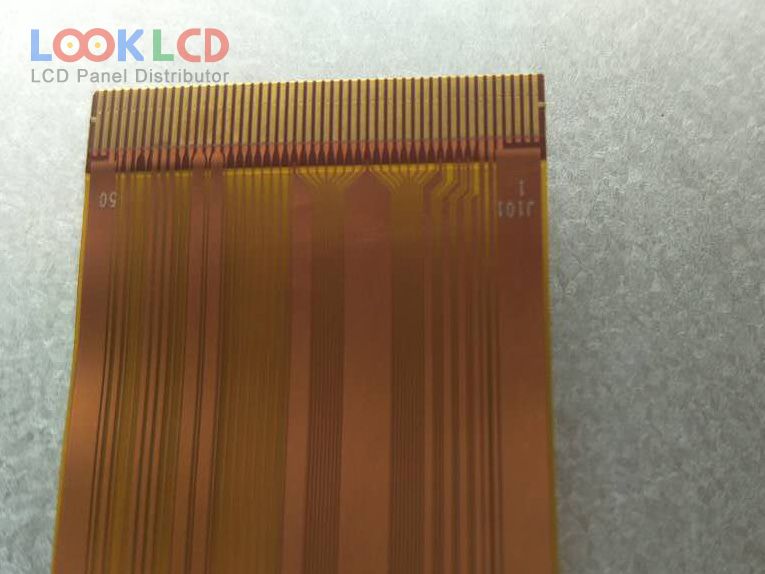

| interfață de semnal | LVDS (1 ch, 6/8-bit), 50 pins |
| tensiune de intrare | 3.3/10.0/18.0/-8.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | IA |
