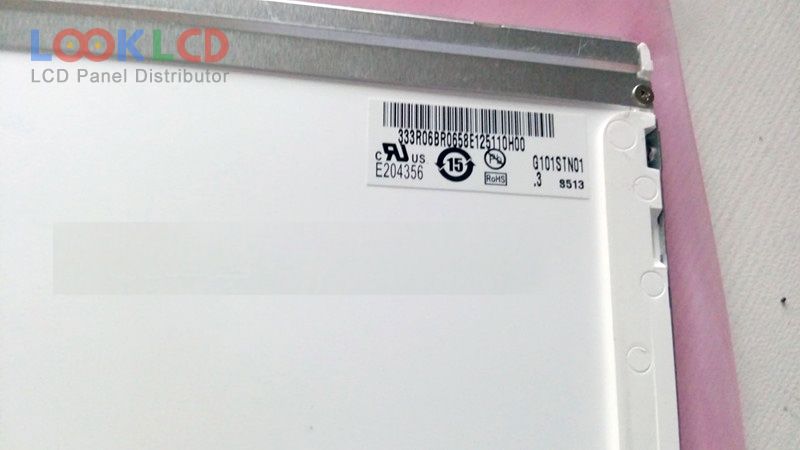

| PartNumber | G101STN01.3 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | IA |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 500:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | G101STN01.3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193145% |
| timp de raspuns | 7/9 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLED |
| interfață de semnal | LVDS (1 ch, 6/8-bit) |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| AA121XJ01 | Mitsubishi | 12.1 | 1024×768 |
| EL320.256-F6 | Lumineq | 4.8 | 320×256 |
| G104XVN01.0 | AUO | 10.4 | 1024×768 |
| G190ETN01.0 | AUO | 19.0 | 1280×1024 |
| KG057QV1CA-G01 | Kyocera | 5.7 | 320×240 |
| LM057QC1T01 | SHARP | 5.7 | 320×240 |
| LTA104D182F | TOSHIBA | 10.4 | 800×600 |
| RGS10128032WR003 | RiTdisplay | 1.0 | 128×32 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TX20D16VM2BAA | KOE | 8.0 | 800×480 |
