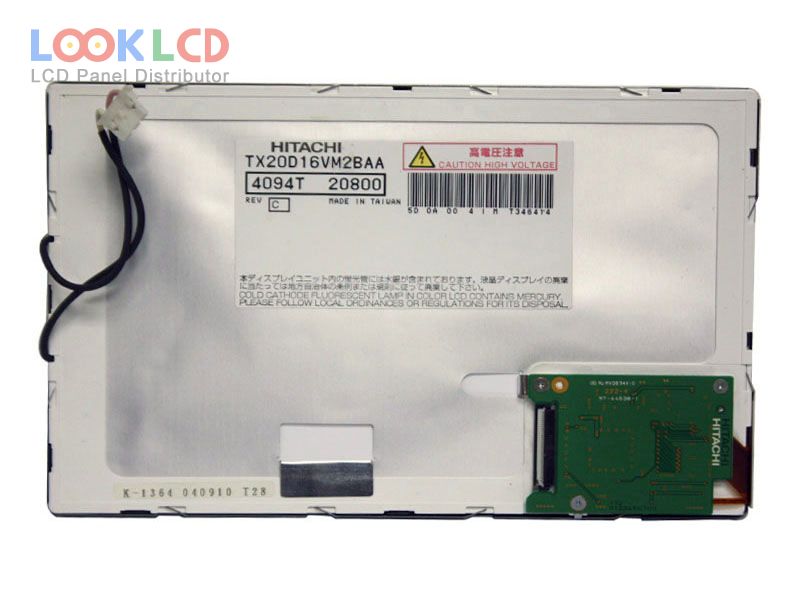

| PartNumber | TX20D16VM2BAA |
| Marca | KOE |
| mărimea | 8.0 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 200:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | HITACHI |
| model de panou | TX20D16VM2BAA |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 174×104.4 mm |
| contur | 189×120 mm |
| suprafaţă | Antiglare |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 200:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 20/10 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
