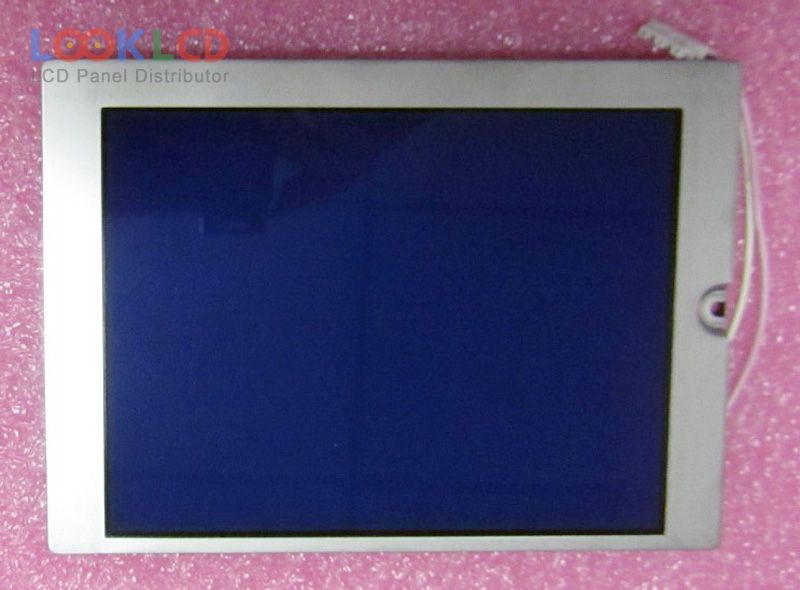

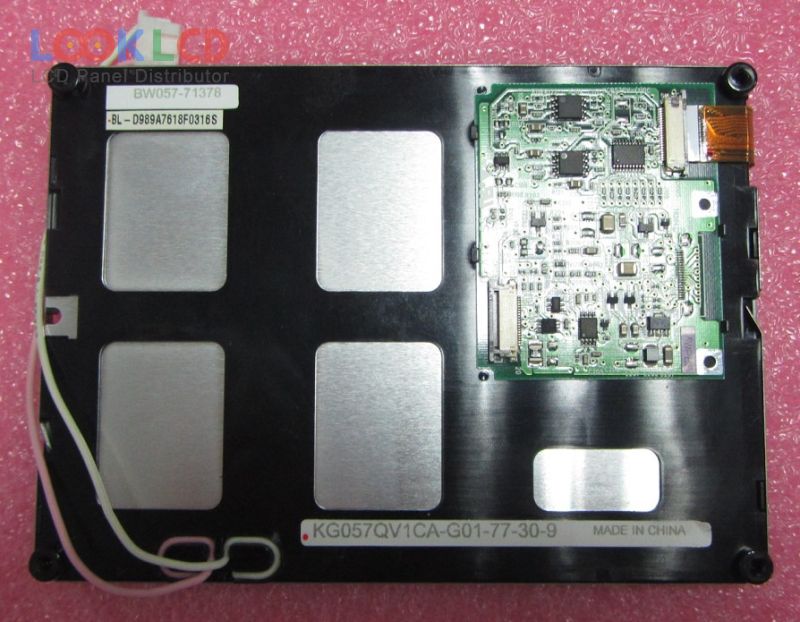

| PartNumber | KG057QV1CA-G01 |
| Marca | Kyocera |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 260 |
| CR | 4:1 |
| Culori | Monochrome |
| Iluminare de fundal | CCFL |
| Interfață | Parallel Data |
| marca panoului | Kyocera |
| model de panou | KG057QV1CA-G01 |
| tip panou | STN-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320×240 , QVGA |
| modul de afișare | STN, Blue mode (Negative), Transmissive |
| Zonă activă | 115.18×86.38 mm |
| contur | 144×104.8×13.2 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 260 cd/m² (Typ.) |
| Raport de contrast | 4:1 (Typ.) |
| culorile afișajului | Monochrome |
| timp de raspuns | 210/130 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥2)(L/R/U/D) |
| frecvență | 75Hz |
| tip lampa | 1 pcsCCFLOptional |
| interfață de semnal | Parallel Data (4-bit), 20 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VDD) |
| aplicarea | IA |
