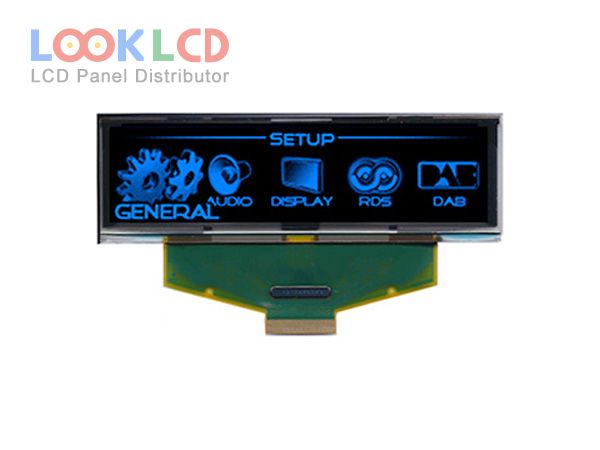

| PartNumber | UG-5664ALBEF01 |
| Marca | WiseChip |
| mărimea | 3.1 |
| Aplicație | IA |
| Rezoluţie | 256×64 |
| Compoziţie | OLED |
| Luminozitate | 80 |
| CR | 2000:1 |
| Culori | Grayscale(B) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI |
| marca panoului | Univision |
| model de panou | UG-5664ALBEF01 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 3.1 inch |
| rezoluţie | 256×64 |
| Zonă activă | 76.78×19.18 mm |
| contur | 88×27.8×2.1 mm |
| suprafaţă | |
| luminozitatea | 80 cd/m² (Typ.) |
| Raport de contrast | 2000 : 1 (Typ.) |
| culorile afișajului | Grayscale(B) (4-bit) |
| unghi de vedere | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COF Built-in SSD1322 |
| interfață de semnal | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| tensiune de intrare | 2.8/12V (Typ.)(VCI/VCC) |
| rohs: | |
| aplicarea | IA |
