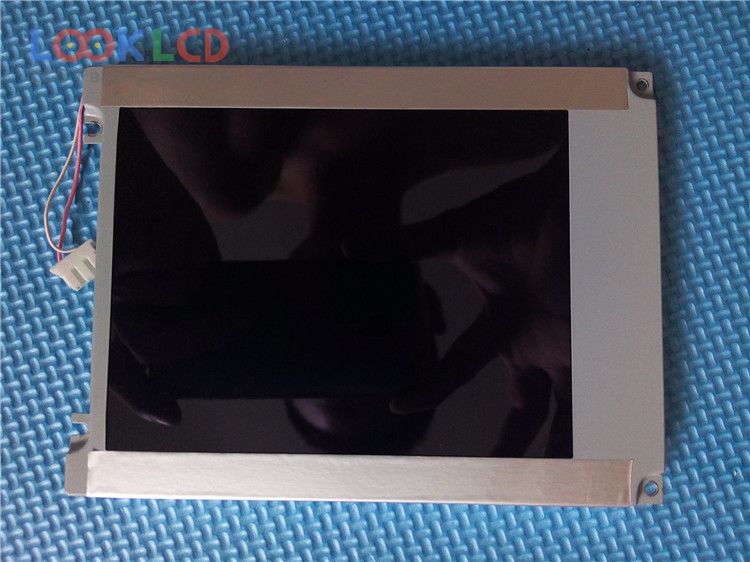

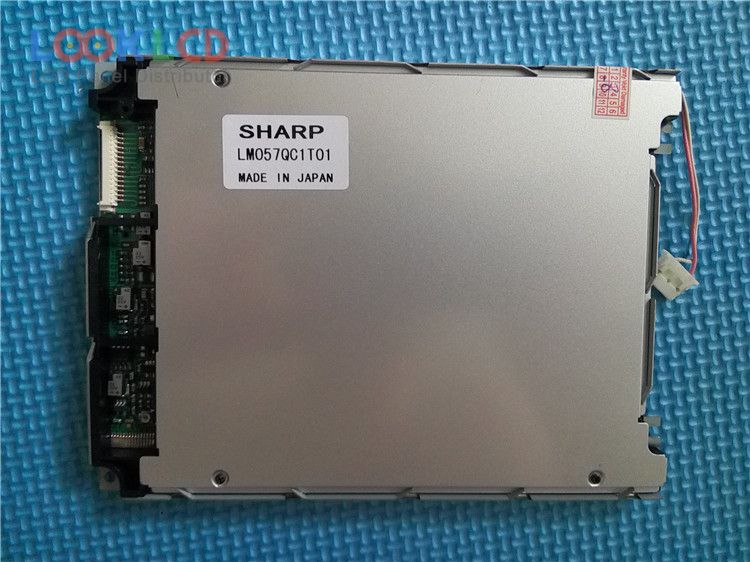

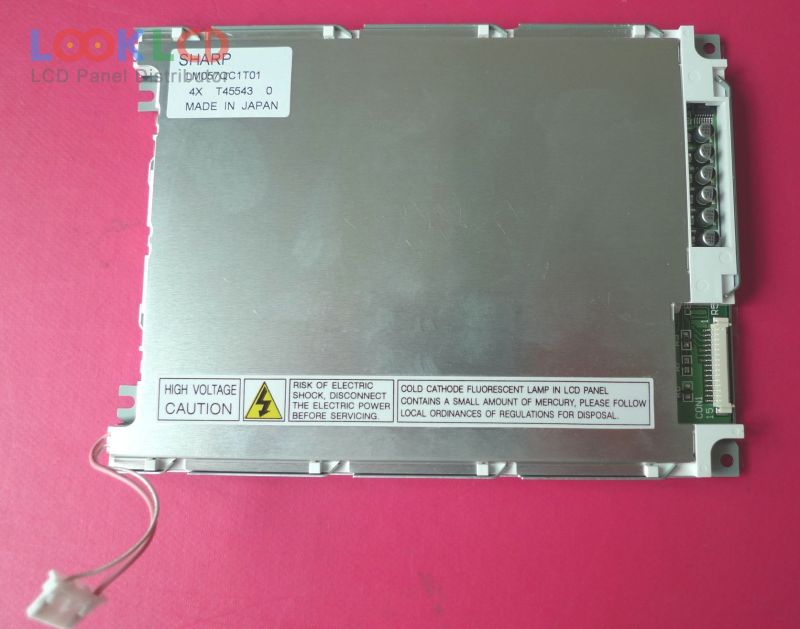

| PartNumber | LM057QC1T01 |
| Marca | SHARP |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 180 |
| CR | 40:1 |
| Culori | Color |
| Iluminare de fundal | CCFL |
| Interfață | Parallel Data |
| marca panoului | SHARP |
| model de panou | LM057QC1T01 |
| tip panou | CSTN-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | STN, Normally Black, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 154.6×114.8 mm |
| suprafaţă | |
| luminozitatea | 180 cd/m² (Typ.) |
| Raport de contrast | 40:1 (Typ.) |
| culorile afișajului | Color |
| timp de raspuns | 450/100 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/35/60 (Typ.)(CR≥2)(L/R/U/D) |
| frecvență | 75Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel Data (8-bit), 15 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VDD) |
| aplicarea | IA |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| DMF-50174ZNB-FW | Kyocera | 5.7 | 320×240 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| KCS057QV1AJ-G39 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| LM057QB1T073 | SHARP | 5.7 | 320×240 |
| LM057QB1T09 | SHARP | 5.7 | 320×240 |
| LM057QC1T01 | SHARP | 5.7 | 320×240 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| AA065VD01 | Mitsubishi | 6.5 | 640×480 |
| DLH1095 | LiteMax | 10.4 | 1024×768 |
| EL320.240.36 LK | Lumineq | 5.7 | 320×240 |
| MD480T640PG4 | Panasonic | 11.3 | 640×480 |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| RGS24128064YW005 | RiTdisplay | 2.4 | 128×64 |
| T-55562D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
| TX38D18VM2BAA REV.B | KOE | 15.0 | 1024×768 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
