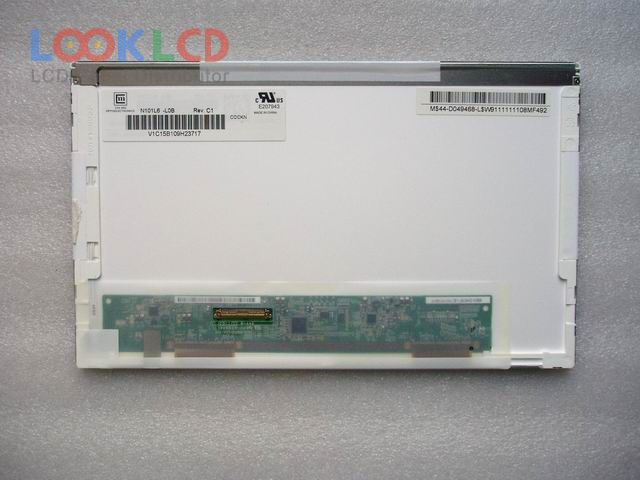

| PartNumber | N101L6-L0B |
| Marca | Innolux |
| mărimea | 10.1 |
| Aplicație | NOPC |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | N101L6-L0B 13 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 235×143×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 3/7 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S2PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NOPC |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| N101L6-L01 | Innolux | 10.1 | 1024×600 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101L6-L0A | Innolux | 10.1 | 1024×600 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| B089AW01 V2 | AUO | 8.9 | 1024×600 |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| LP089WS2-TLB1 | LG Display | 8.9 | 1024×600 |
| LP101WS1-TLB1 | LG Display | 10.1 | 1024×576 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| LP116WH4-TJA3 | LG Display | 11.6 | 1366×768 |
| LTN116AT01-401 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-A01 | Samsung | 11.6 | 1366×768 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
