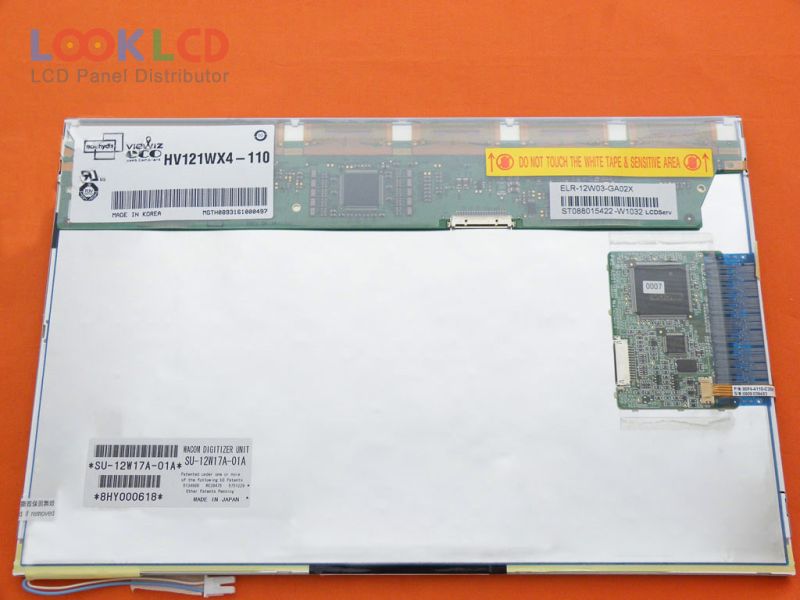

| PartNumber | HV121WX4-110 |
| Marca | HYDIS |
| mărimea | 12.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | HYDIS |
| model de panou | HV121WX4-110 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | AFFS, Normally Black, Transmissive |
| Zonă activă | 261.12×163.2 mm |
| contur | 275.8×178×6.7 mm |
| suprafaţă | Antireflection |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 28 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
