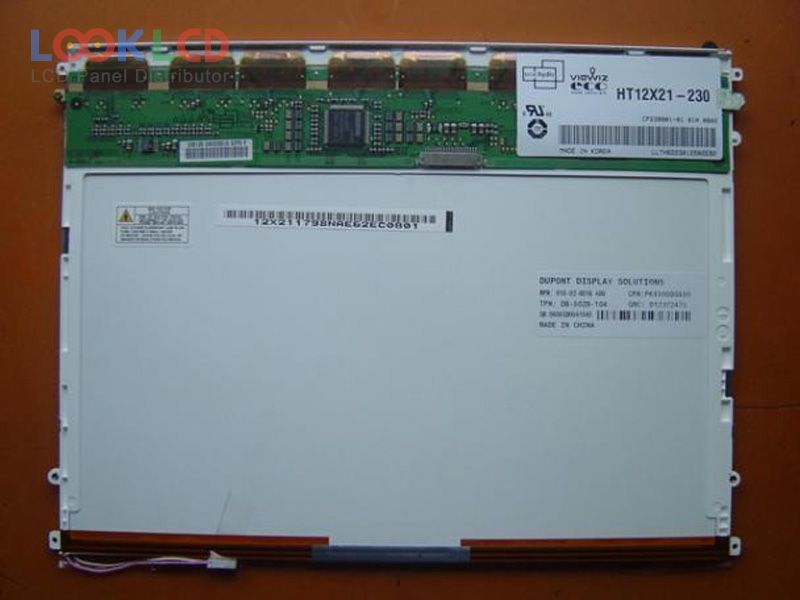

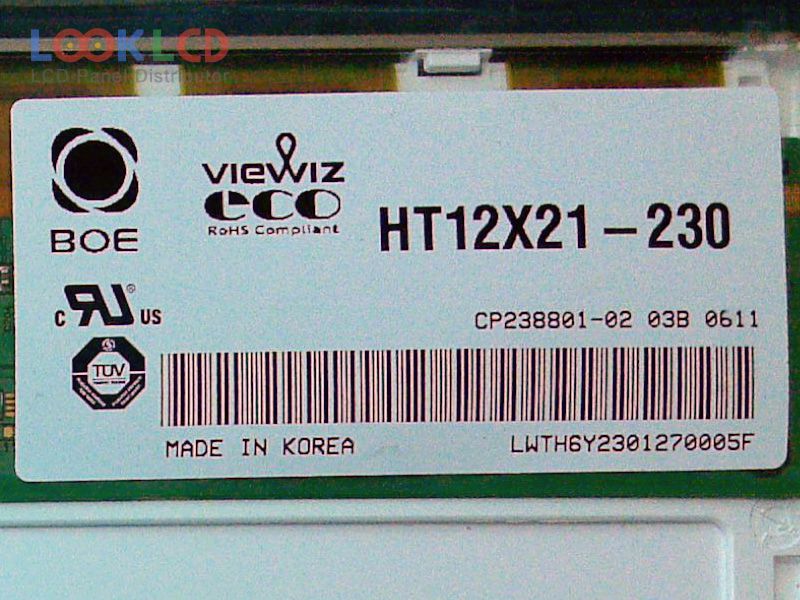

| PartNumber | HT12X21-230 |
| Marca | HYDIS |
| mărimea | 12.1 |
| Aplicație | PAD |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 180 |
| CR | 450:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | BOE HYDIS |
| model de panou | HT12X21-230 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | AFFS, Normally Black, Transmissive |
| Zonă activă | 245.76×184.32 mm |
| contur | 270×199×7 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 180 cd/m² (Typ.) |
| Raport de contrast | 450:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193140% |
| timp de raspuns | 40 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
