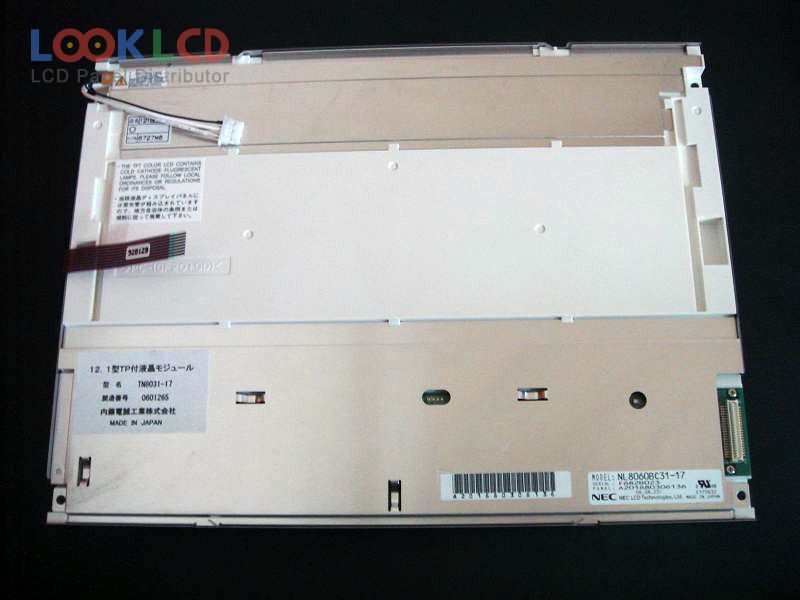

| PartNumber | NL8060BC31-17 |
| Marca | NLT |
| mărimea | 12.1 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL8060BC31-17 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 280×210×13.7 mm |
| suprafaţă | |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193143% |
| timp de raspuns | 15/55 (Typ.)(Tr/Td) |
| unghi de vedere | 55/55/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 41 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VCC) |
| aplicarea | IA |
