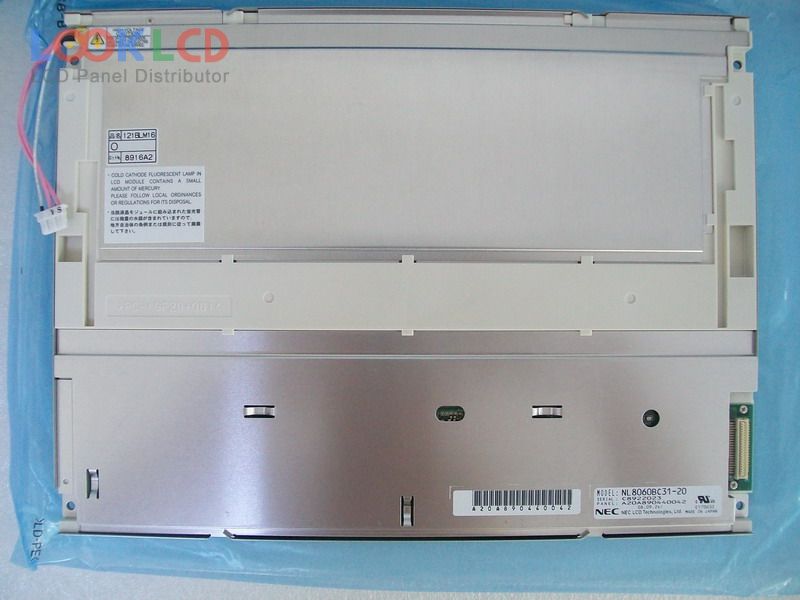

| PartNumber | NL8060BC31-20 |
| Marca | NLT |
| mărimea | 12.1 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL8060BC31-20 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | A-SFT, Normally Black, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 280×210×13.7 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193138% |
| timp de raspuns | 40/40 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 41 pins |
| tensiune de intrare | 3.3/5.0V (Typ.) |
| rohs: | |
| aplicarea | IA |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| NL8060BC21-11C | NLT | 8.4 | 800×600 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| NL8060BC26-30C | NLT | 10.4 | 800×600 |
| NL8060BC31-02 | NLT | 12.1 | 800×600 |
| NL8060BC31-27 | NLT | 12.1 | 800×600 |
| NL8060BC31-41D | NLT | 12.1 | 800×600 |
| NL8060BC31-41E | NLT | 12.1 | 800×600 |
| NL8060BC31-47D | NLT | 12.1 | 800×600 |
| KCS072VG1MB-G42 | Kyocera | 7.2 | 640×480 |
| LM-CA53-22NAZ | SANYO | 9.4 | 640×480 |
| LM6Q35 | SHARP | 5.5 | 320×240 |
| LQ064V3DG05 | SHARP | 6.4 | 640×480 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| LQ10D421 | SHARP | 10.4 | 640×480 |
| LQ190E1LW02 | SHARP | 19.0 | 1280×1024 |
| OEL9M0078-Y-E | Other | 1.45 | 132×16 |
| PD057VU9 | E Ink | 5.7 | 640×480 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
