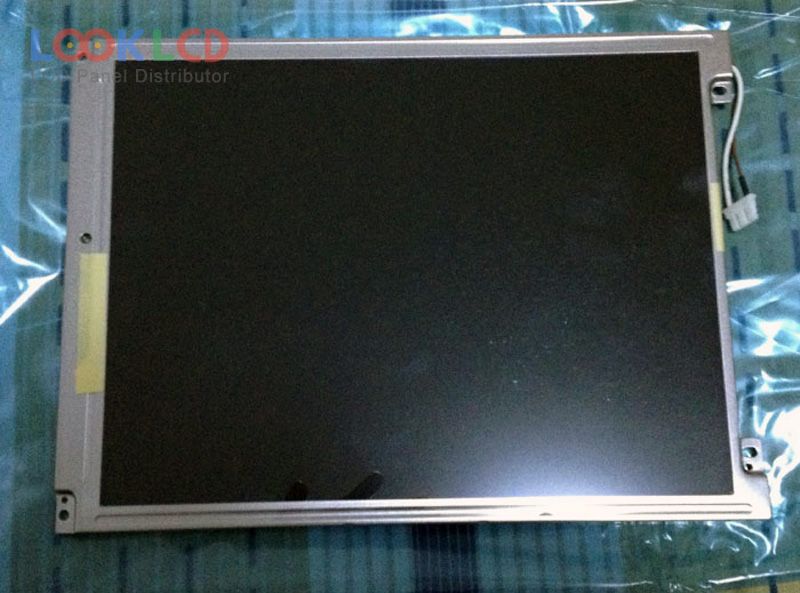

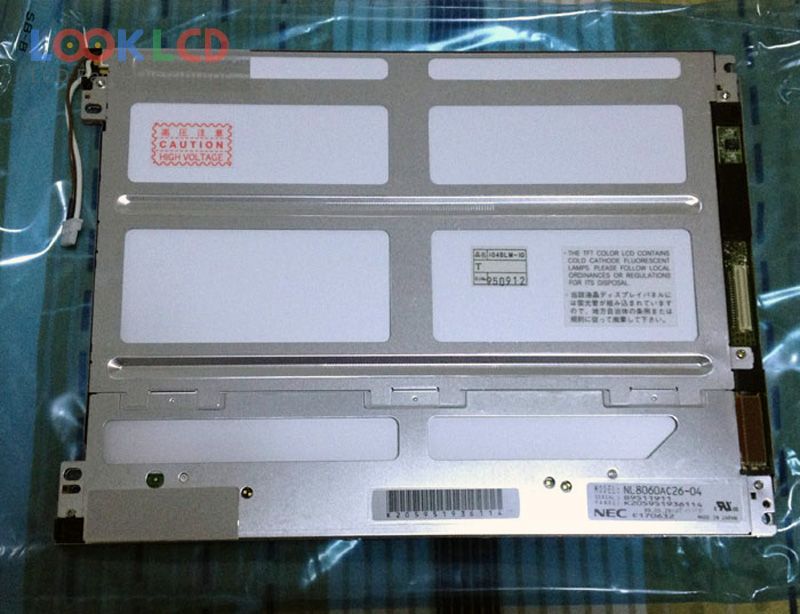

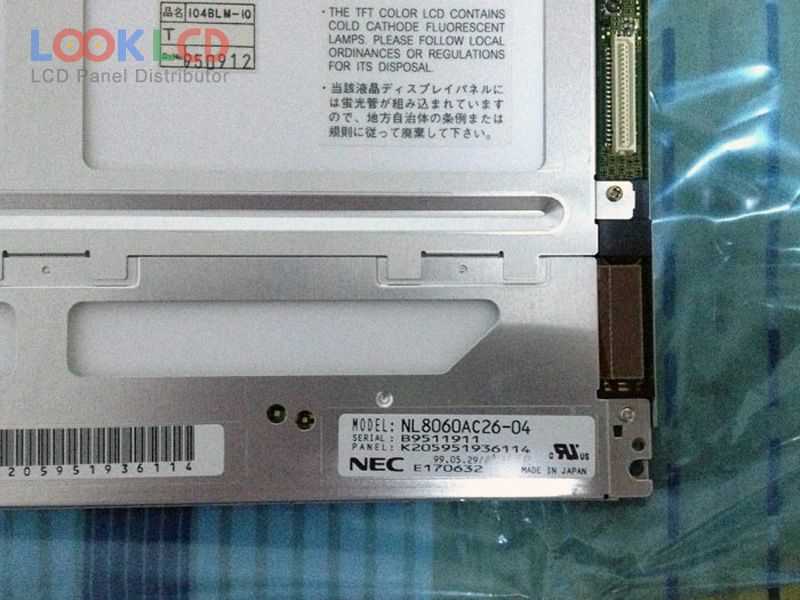

| PartNumber | NL8060AC26-04 |
| Marca | NLT |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 70 |
| CR | 150:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL8060AC26-04 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 243×179 mm |
| suprafaţă | Antireflection |
| luminozitatea | 70 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193142% |
| timp de raspuns | 40 (Max.)(Tr) |
| unghi de vedere | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 41 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VCC) |
| aplicarea | IA |
