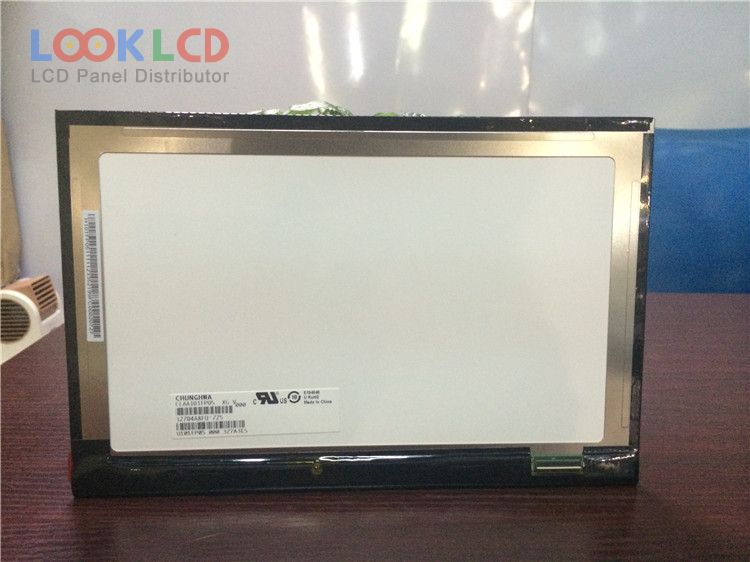

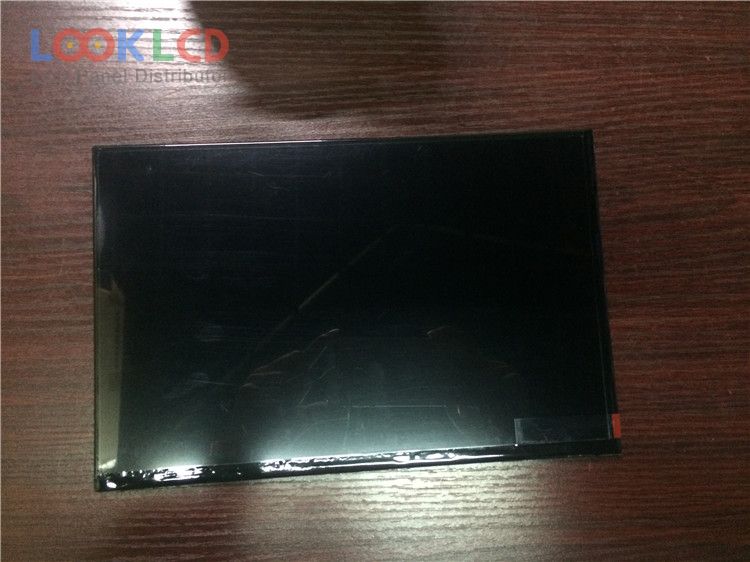

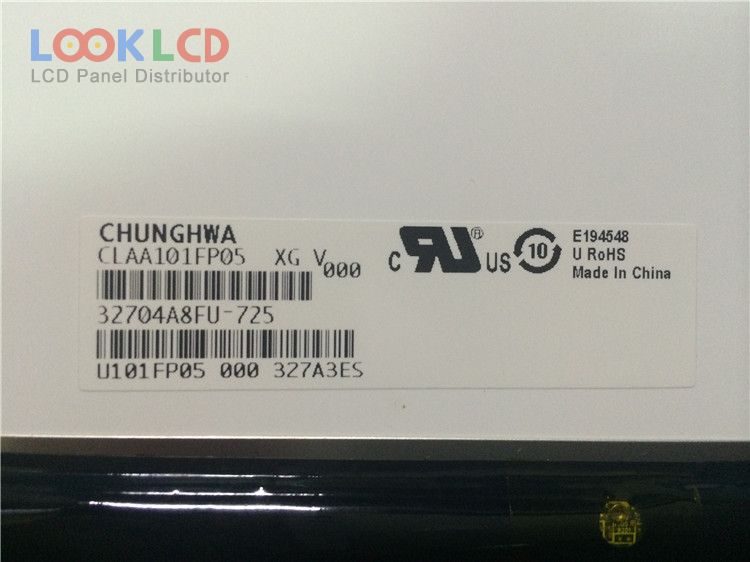

| PartNumber | CLAA101FP05 XG |
| Marca | CPT |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 370 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | CPT |
| model de panou | CLAA101FP05 XG |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 216.576×135.36 mm |
| contur | 227.72×148.65×4.55 mm |
| suprafaţă | Glare (Haze 0%), Hard coating |
| luminozitatea | 370 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5S6PWLEDEmbedded (LED Driver) |
| interfață de semnal | MIPI (4 data lanes), 34 pins |
| tensiune de intrare | 3.7V (Typ.) |
| aplicarea | PAD |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| HSD101PWW2-A01 | HannStar | 10.1 | 1280×800 |
| HT12X21-240 | HYDIS | 12.1 | 1024×768 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LT121DKXBF00 | TOSHIBA | 12.1 | 1280×800 |
| LTN070NL01 | Samsung | 7.0 | 1024×600 |
| LTN097QL01-A02 | Samsung | 9.7 | 2048×1536 |
| TV101QUM-N00 | BOE | 10.1 | 3840×2160 |
