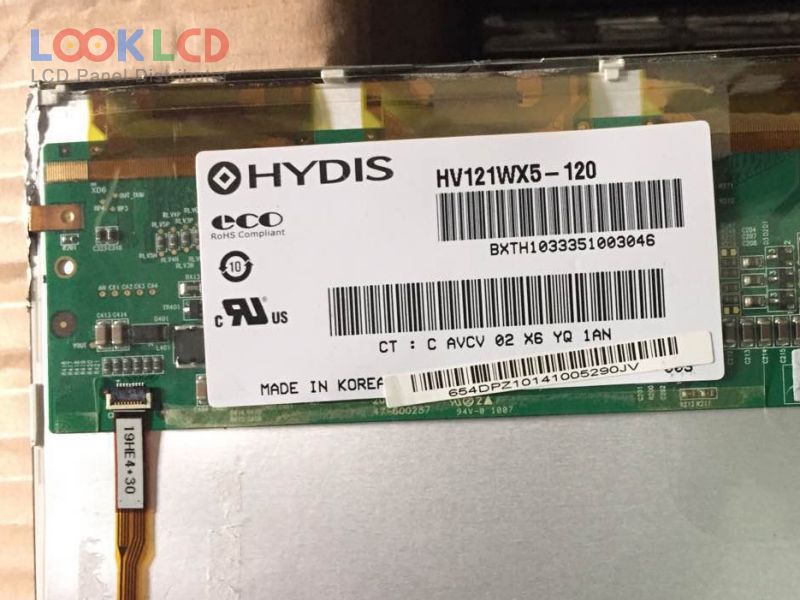

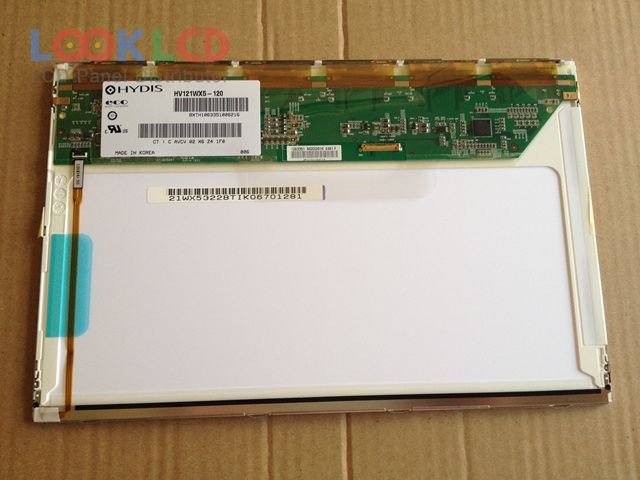

| PartNumber | HV121WX5-120 |
| Marca | HYDIS |
| mărimea | 12.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | HYDIS |
| model de panou | HV121WX5-120 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | AFFS, Normally Black, Transmissive |
| Zonă activă | 261.12×163.2 mm |
| contur | 276.8×180×6.8 mm |
| suprafaţă | |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 12S4PWLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (1 Lane), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
