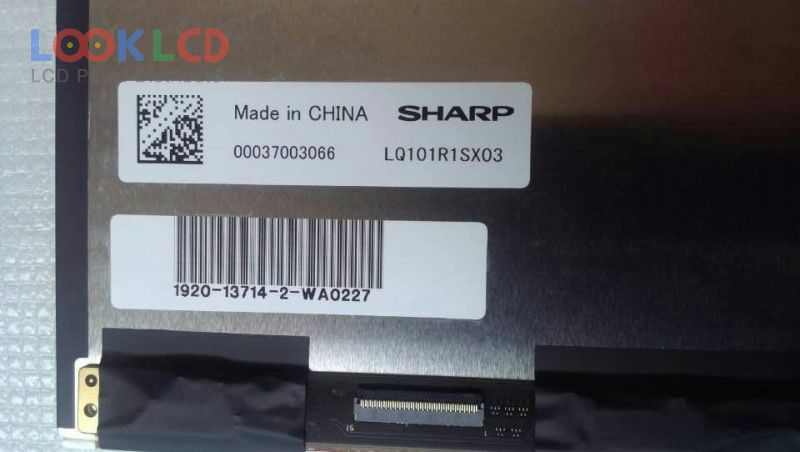

| PartNumber | LQ101R1SX03 |
| Marca | SHARP |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 2560×1600 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | SHARP |
| model de panou | LQ101R1SX03 |
| tip panou | IGZO TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 2560(RGB)×1600 , WQXGA |
| modul de afișare | Normally Black, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 228.2×148.6×4.45 mm |
| suprafaţă | Clear, Hard coating |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S6PWLEDWithout Driver |
| interfață de semnal | MIPI (2 ch, 4 data lanes), 51 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
